BAT46WS Datasheet | Semiware Semiconductor

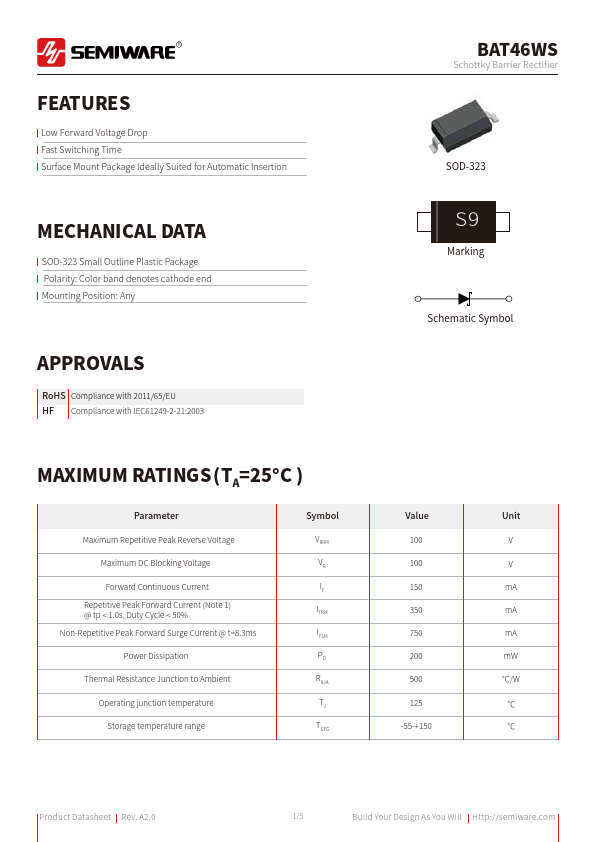

Features Low Forward Voltage Drop Fast Switching Time Surface Mount Package Ideally Suited for Automatic Insertion MECHANICAL DATA SOD-323 Small Outline Plastic Package Polarity: Color band denotes cathode end Mounting Position: Any APPROVALS RoHS pliance with 2011/65/EU HF pliance with IEC61249-2-21:2003 MAXIMUM RATINGS (TA=25°C ) Parameter Maximum Repetitive Peak Reverse Voltage Maximum DC Blocking Voltage Forward Continuous Current Repetitive Peak Forward Current (Note 1) @ tp < 1.0s, Duty Cycle < 50% Non-Repetitive Peak Forward Surge Current @ t=8.3ms Power Dissipation Thermal Resistance Junction to Ambient Operating junction temperature Storage temperature range Symbol...
