BAT43WS Datasheet | Semiware Semiconductor

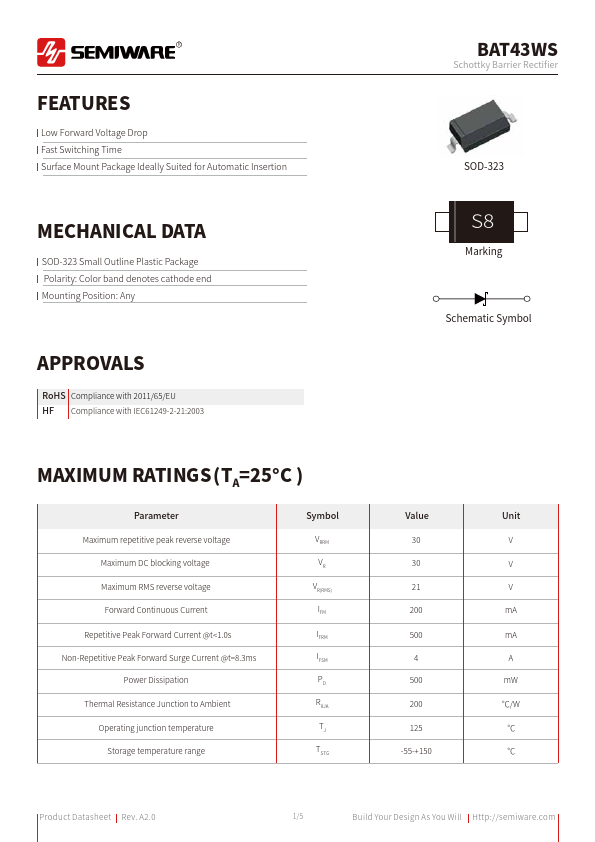

Features Low Forward Voltage Drop Fast Switching Time Surface Mount Package Ideally Suited for Automatic Insertion MECHANICAL DATA SOD-323 Small Outline Plastic Package Polarity: Color band denotes cathode end Mounting Position: Any APPROVALS RoHS pliance with 2011/65/EU HF pliance with IEC61249-2-21:2003 MAXIMUM RATINGS (TA=25°C ) Parameter Maximum repetitive peak reverse voltage Maximum DC blocking voltage Maximum RMS reverse voltage Forward Continuous Current Repetitive Peak Forward Current @t<1.0s Non-Repetitive Peak Forward Surge Current @t=8.3ms Power Dissipation Thermal Resistance Junction to Ambient Operating junction temperature Storage temperature range Symbol VRRM VR...
