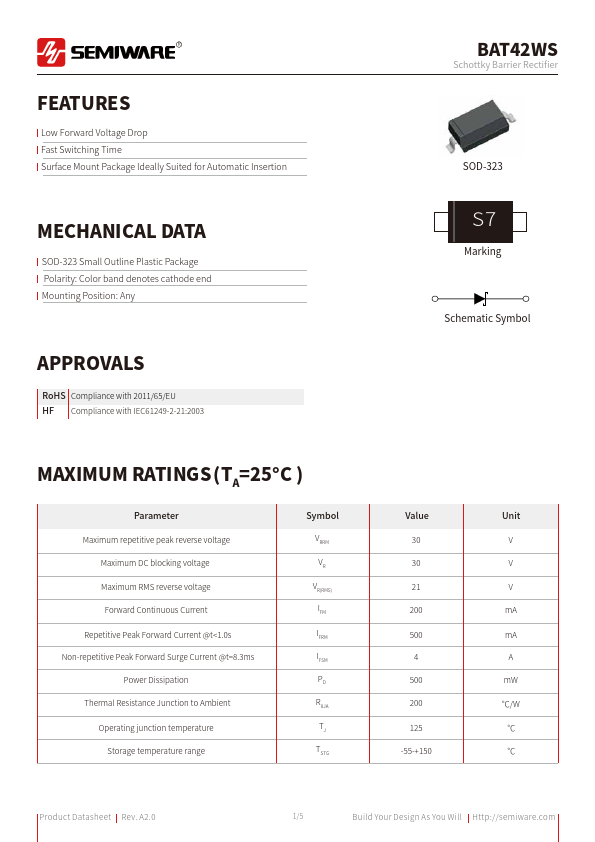

BAT42WS
BAT42WS is Schottky Barrier Rectifier manufactured by Semiware Semiconductor.
Features
Low Forward Voltage Drop Fast Switching Time Surface Mount Package Ideally Suited for Automatic Insertion
MECHANICAL DATA
SOD-323 Small Outline Plastic Package Polarity: Color band denotes cathode end Mounting Position: Any
APPROVALS
RoHS pliance with 2011/65/EU HF pliance with IEC61249-2-21:2003
MAXIMUM RATINGS (TA=25°C )
Parameter Maximum repetitive peak reverse voltage
Maximum DC blocking voltage Maximum RMS reverse voltage Forward Continuous Current Repetitive Peak Forward Current @t<1.0s Non-repetitive Peak Forward Surge Current @t=8.3ms
Power Dissipation Thermal Resistance Junction to Ambient
Operating junction temperature Storage temperature range
Symbol VRRM VR...
