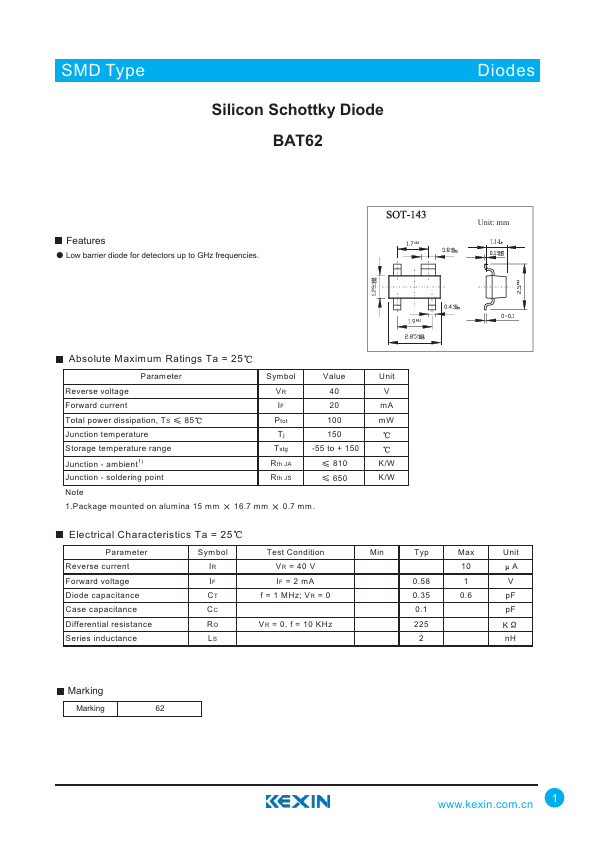

BAT62 Datasheet Silicon Schottky Diode

Manufacturer: Kexin Semiconductor

Overview: SMD Type Silicon Schottky Diode BAT62.

Datasheet Details

Low barrier diode for detectors up to GHz frequencies. Diodes Unit: mm Absolute Maximum Ratings Ta = 25 P aram eter Reverse voltage Forward current Total power dissipation, TS 85 Junction temperature Storage temperature range Junction - ambient1) Junction - soldering point Note 1.Package mounted on alumina 15 mm Symbol VR IF Ptot Tj Tstg Rth JA Rth JS Value 40 20 100 150 -55 to + 150 810 650 16.7 mm 0.7 mm. Unit V mA mW K/W K/W Electrical Characteristics Ta = 25 P aram eter Reverse curr.
