BAT68-04
BAT68-04 is Silicon Schottky Diode manufactured by Kexin Semiconductor.
- Part of the BAT68 comparator family.
- Part of the BAT68 comparator family.

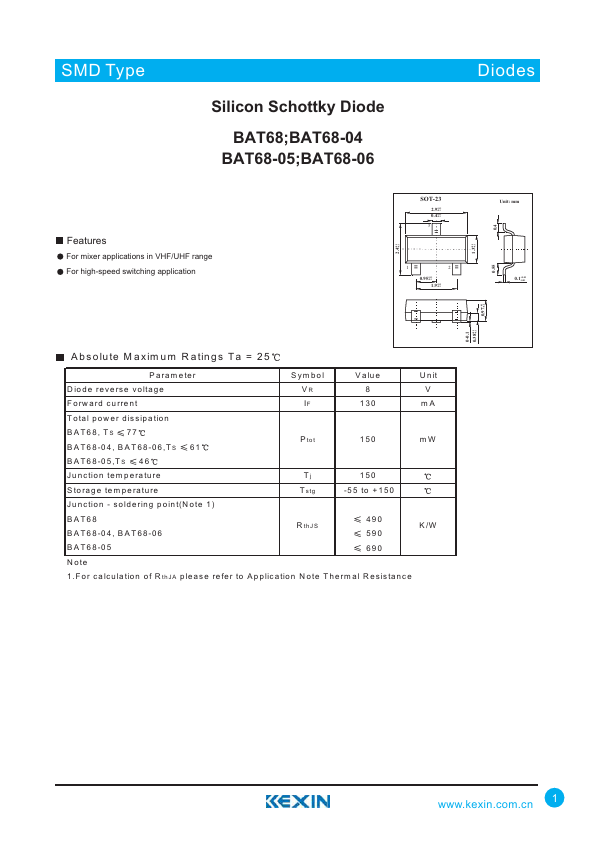

SMD Type
Silicon Schottky Diode
BAT68;BAT68-04 BAT68-05;BAT68-06
Diodes
Features
For mixer applications in VHF/UHF range For high-speed switching application
+0.1 2.4 -0.1
SOT-23
2.9+0.1 -0.1
0.4+0.1 -0.1
0.95+0.1 -0.1 1.9+0.1 -0.1
A bsolute M axim um R atings T a = 25
P aram eter
Sym bol
V alue
U nit
D iode reverse voltage
Forward current
130 mA
Total pow er dissipation
BAT68, TS 77 B A T68-04, B A T68-06,TS 61
P tot
150 mW
B A T68-05,TS 46
Junction tem perature
Tj
S torage tem perature
T stg
-55 to...
