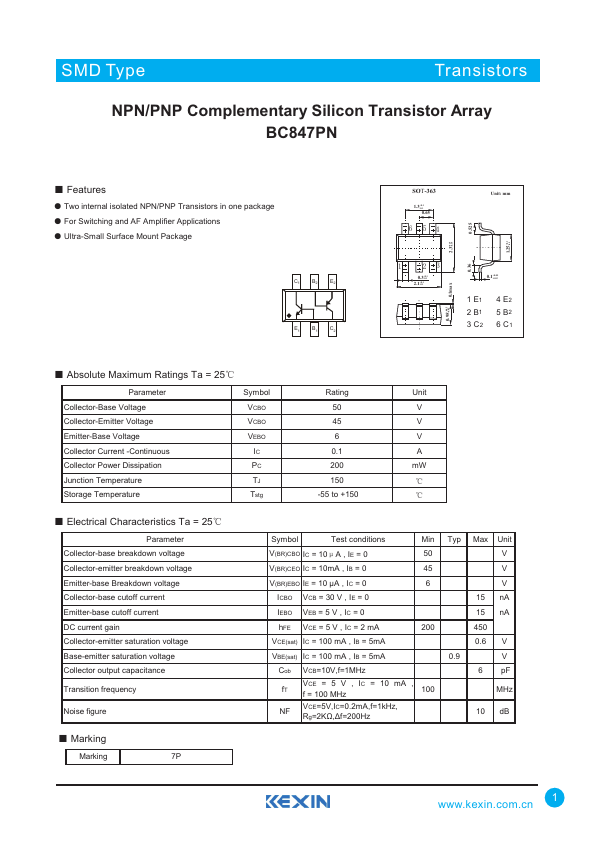

BC847PN
BC847PN is NPN/PNP Complementary Silicon Transistor Array manufactured by Kexin Semiconductor.
SMD Type
Transistors
NPN/PNP plementary Silicon Transistor Array BC847PN
- Features
- Two internal isolated NPN/PNP Transistors in one package
- For Switching and AF Amplifier Applications
- Ultra-Small Surface Mount Package
C1
B2
E2
E1
B1
C2
SOT-363
1.3+0.1 -0.1 0.65
6 54
Unit: mm
+0.1 1.25 -0.1
+0.15 2.3 -0.15
1 23
0.3+0.1 -0.1
2.1+0.1 -0.1
+0.05 0.95 -0.05
0.1max
0.1+0.05 -0.02
1 E1 2 B1 3 C2
4 E2 5 B2 6 C1
-...
