BCP52
Features
- For AF driver and output stages
- High collector current
- Low collector-emitter saturation voltage
- plementary to BCP54,BCP55,BCP56
SOT-223
6.50±0.2 3.00±0.1
10b
Unit:mm
7.0±0.3 3.50±0.2
1.80 (max) 0.02 ~ 0.1
2.30 (typ)
4.60 (typ)
0.70±0.1
0.250 Gauge Plane
1.Base 2.Collector 3.Emitter 4.Collector
- Absolute Maximum Ratings Ta = 25℃
Parameter Collector
- Base Voltage Collector
- Emitter Voltage Emitter
- Base Voltage Collector Current
- Continuous Collector Power Dissipation Thermal Resistance Junction to Ambient Junction Temperature Storage Temperature Range
Symbol VCBO VCEO VEBO IC PC RθJA TJ Tstg
BCP51 -45 -45
BCP52 -60 -60 -5 -1 1.5 94 150
-65 to 150
BCP53 -100 -80
Unit
A W ℃/W ℃
.kexin..cn 1
SMD Type
Transistors

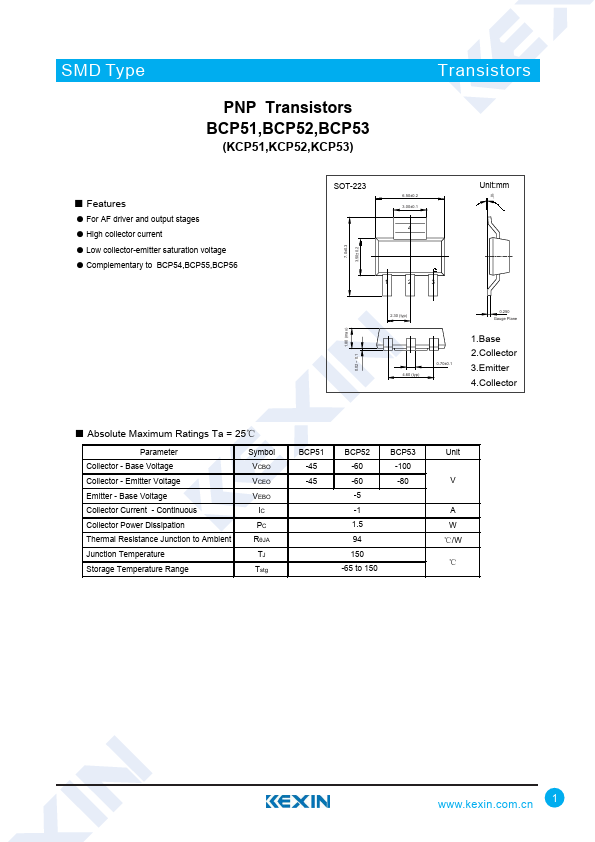

PNP Transistors BCP51,BCP52,BCP53
(KCP51,KCP52,KCP53)

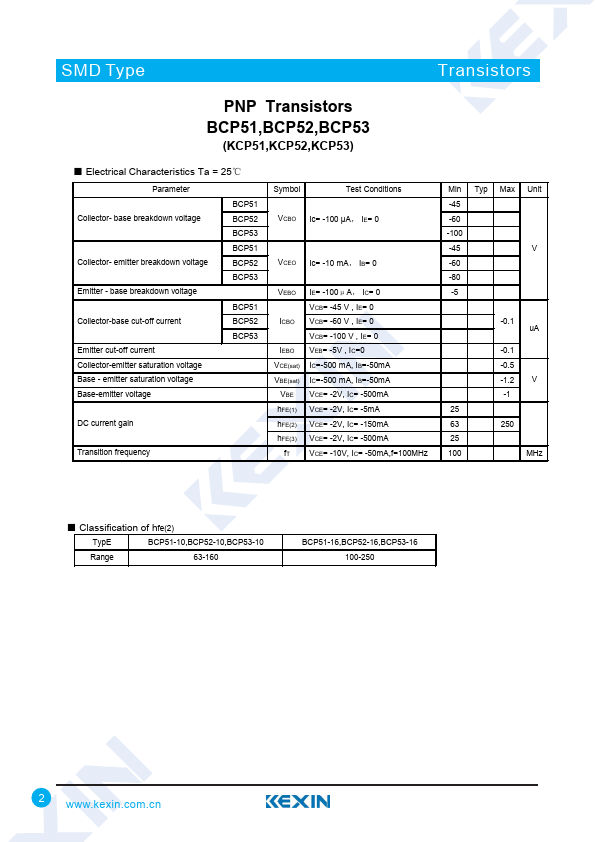

- Electrical Characteristics Ta =...
