BCP56 Datasheet NPN Transistors

Manufacturer: Kexin Semiconductor

Download the BCP56 datasheet PDF. This datasheet also includes the BCP54 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

BCP56 npn transistors by Kexin Semiconductor - Datasheet Preview — Note: The manufacturer provides a single datasheet file (BCP54-Kexin.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	BCP56
Manufacturer	Kexin Semiconductor
File Size	802.44 KB
Description	NPN Transistors
Datasheet	BCP56 Datasheet

Overview

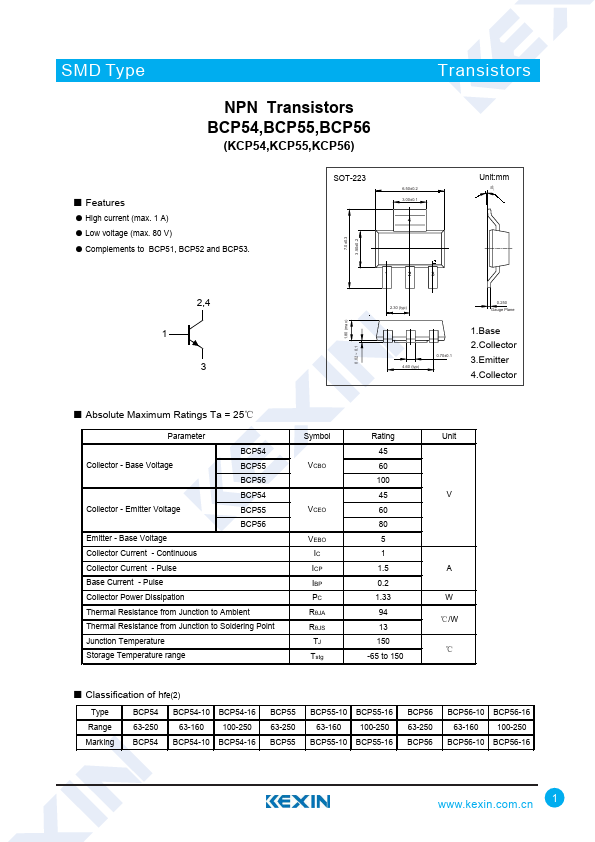

SMD Type Transistors NPN Transistors BCP54,BCP55,BCP56 (KCP54,KCP55,KCP56).

Key Features

s.
High current (max. 1 A).
Low voltage (max. 80 V).
Complements to BCP51, BCP52 and BCP53. 2,4 1 3 SOT-223 6.50±0.2 3.00±0.1 4 10b Unit:mm 7.0±0.3 3.50±0.2 1.80 (max) 0.02 ~ 0.1 1 2 3 2.30 (typ) 4.60 (typ) 0.70±0.1 0.250 Gauge Plane 1.Base 2.Collector 3.Emitter 4.Collector.
Absolute Maximum Ratings Ta = 25℃ Parameter BCP54 Collector - Base Voltage BCP55 BCP56 BCP54 Collector - Emitter Voltage BCP55 BCP56 Emitter - Base Voltage Collector Current - Con.
