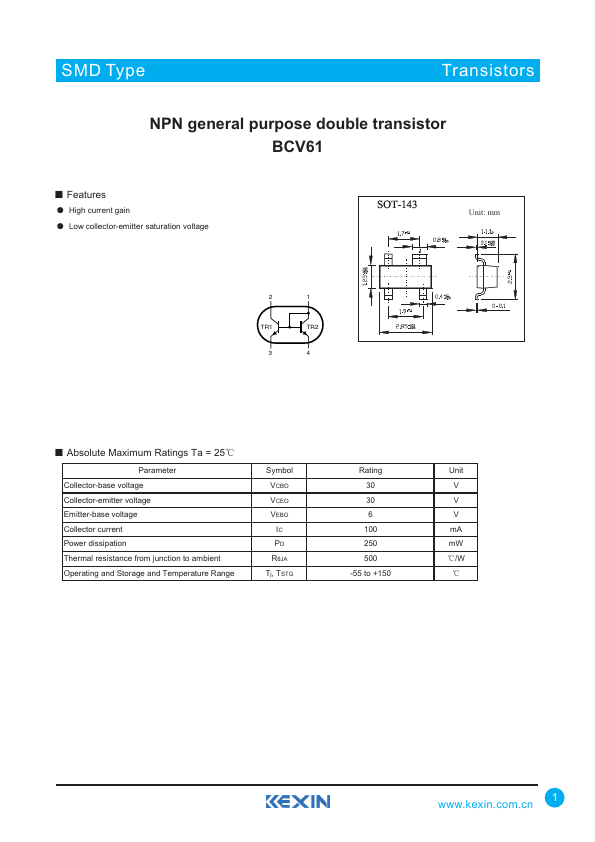

BCV61 Datasheet NPN General Purpose Double Transistor

Manufacturer: Kexin Semiconductor

Overview: SMD Type Transistors NPN general purpose double transistor BCV61.

Datasheet Details

Part number	BCV61
Manufacturer	Kexin Semiconductor
File Size	124.04 KB
Description	NPN general purpose double transistor
Datasheet	BCV61-Kexin.pdf

s.
High current gain.
Low collector-emitter saturation voltage Unit: mm 1 2 1 TR1 TR2 3 4.
Absolute Maximum Ratings Ta = 25℃ Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Power dissipation Thermal resistance from junction to ambient Operating and Storage and Temperature Range Symbol VCBO VCEO VEBO IC PD RθJA Tj, TSTG Rating 30 30 6 100 250 500 -55 to +150 Unit V V V mA mW ℃/W ℃ 1 www. kexin. com. cn SMD Type Transistor.
