BCV61
BCV61 is NPN general-purpose double transistors manufactured by Nexperia.
NPN general-purpose double transistors
Rev. 04
- 18 December 2009
Product data sheet
1. Product profile
1.1 General description

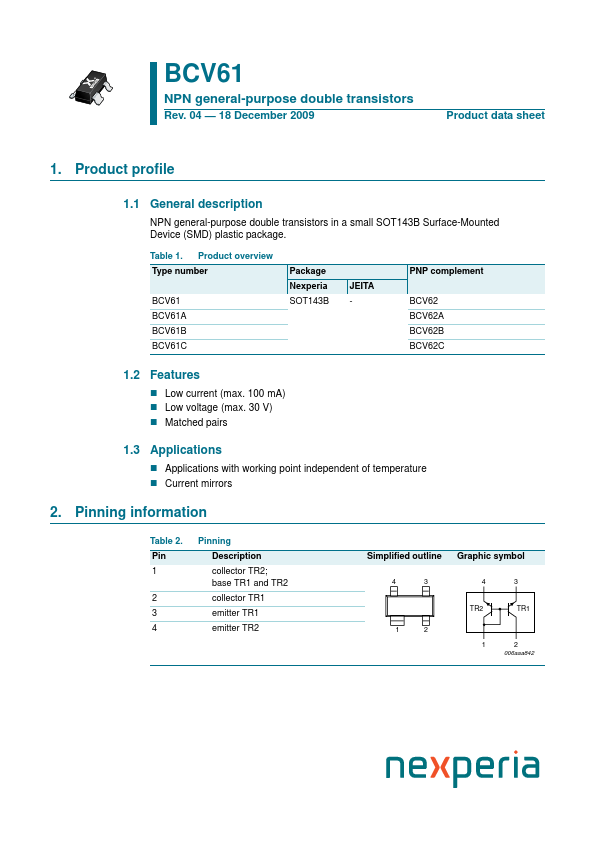

NPN general-purpose double transistors in a small SOT143B Surface-Mounted Device (SMD) plastic package.
Table 1. Product overview Type number
BCV61 BCV61A BCV61B BCV61C
Package Nexperia SOT143B
JEITA
- PNP plement
BCV62 BCV62A BCV62B BCV62C
1.2 Features
- Low current (max. 100 mA)
- Low voltage (max. 30 V)
- Matched pairs
1.3 Applications
- Applications with working point independent of temperature
- Current mirrors
2. Pinning information
Table 2. Pin 1
2 3 4
Pinning Description collector TR2; base TR1 and TR2 collector TR1 emitter TR1 emitter...
