BFS19 Datasheet NPN Medium Frequency Transistor

Manufacturer: Kexin Semiconductor

Overview: SMD Type Transistors NPN Medium Frequency Transistor BFS19.

Datasheet Details

Part number	BFS19
Manufacturer	Kexin Semiconductor
File Size	35.48 KB
Description	NPN Medium Frequency Transistor
Download	BFS19 Download (PDF)

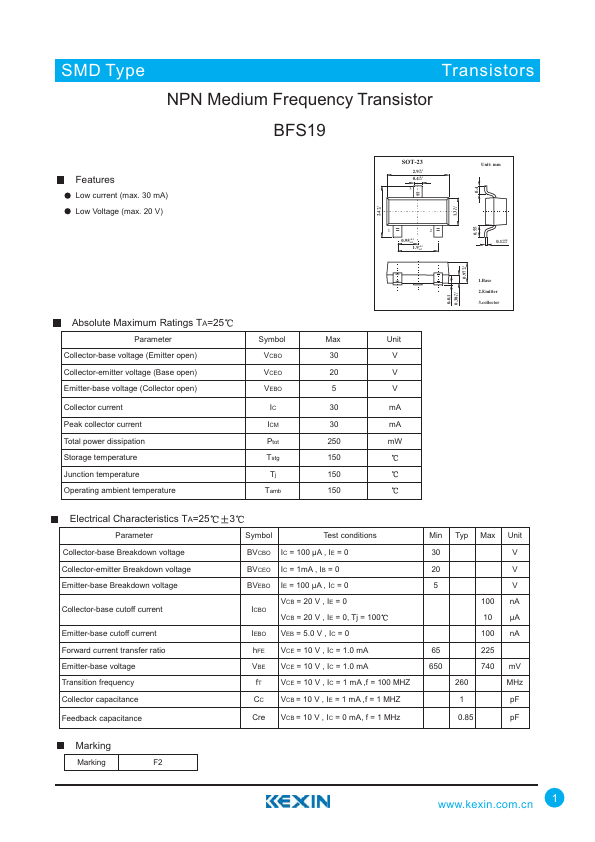

Low current (max. 30 mA) Low Voltage (max. 20 V) +0.1 2.4 -0.1 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 3 1 2 0.95+0.1 -0.1 1.9+0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1+0.05 -0.01 +0.1 0.97 -0.1 Absolute Maximum Ratings TA=25 Parameter Symbol Max Unit Collector-base voltage (Emitter open) VCBO 30 V Collector-emitter voltage (Base open) VCEO 20 V Emitter-base voltage (Collector open) VEBO 5 V Collector current IC 30 mA Peak collector current Total power dissipation Sto.
