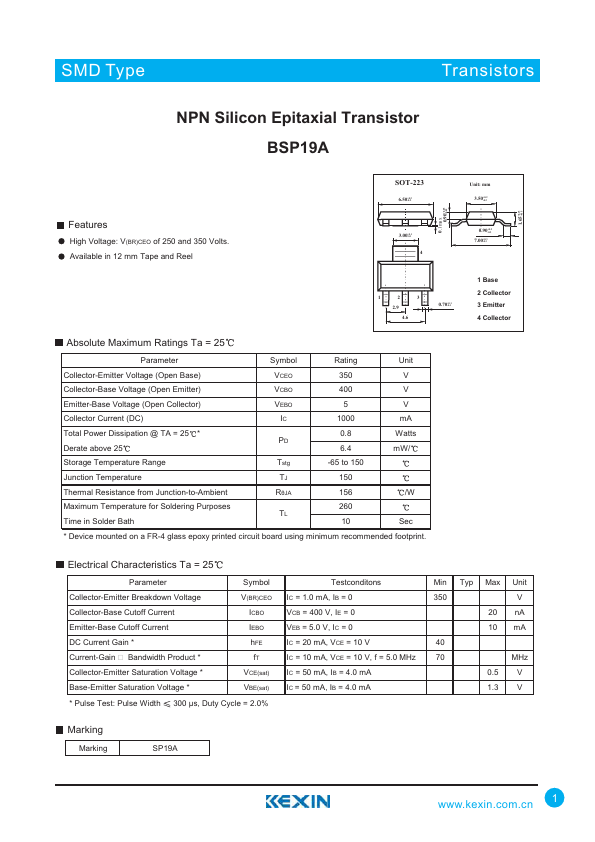

BSP19A Datasheet NPN Silicon Epitaxial Transistor

Manufacturer: Kexin Semiconductor

Overview: SMD Type Transistors NPN Silicon Epitaxial Transistor BSP19A 0.1max +0.05 0.90 -0.05 +0.15 1.65 -0.15 SOT-223 6.50+0.2 -0.2 Unit: mm 3.50+0.2 -0.

Key Features

  • High Voltage: V(BR)CEO of 250 and 350 Volts. Available in 12 mm Tape and Reel 3.00+0.1 -0.1 4 0.90+0.2 -0.2 7.00+0.3 -0.3 1 2 3 2.9 4.6 0.70+0.1 -0.1 1 Base 2 Collector 3 Emitter 4 Collector Absolute Maximum Ratings Ta = 25 Parameter Symbol Rating Unit Collector-Emitter Voltage (Open Base) VCEO 350 V Collector-Base Voltage (Open Emitter) VCBO 400 V Emitter-Base Voltage (Open Collector) VEBO 5 V Collector Current (DC) IC 1000 mA Total Power Dissipation @ TA = 25.
