Kexin Electronics BSR13
NPN Switching Transistors
| Part No. | BSR13 |
|---|---|
| Datasheet | BSR13 Download |
| Manufacturer | Kexin Electronics |
| Description | NPN Switching Transistors |
| Buy | Stock & Price |
FEATURES

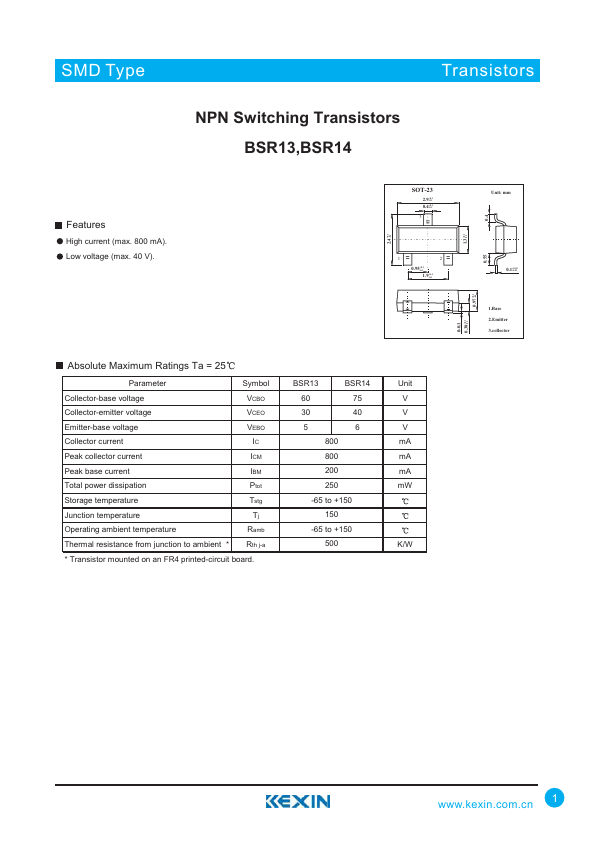

High current (max. 800 mA). Low voltage (max. 40 V). +0.1 2.4 -0.1 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 3 1 2 0.95+0.1 -0.1 1.9+0.1 -0.1ABSOLUTE MAXIMUM RATINGS

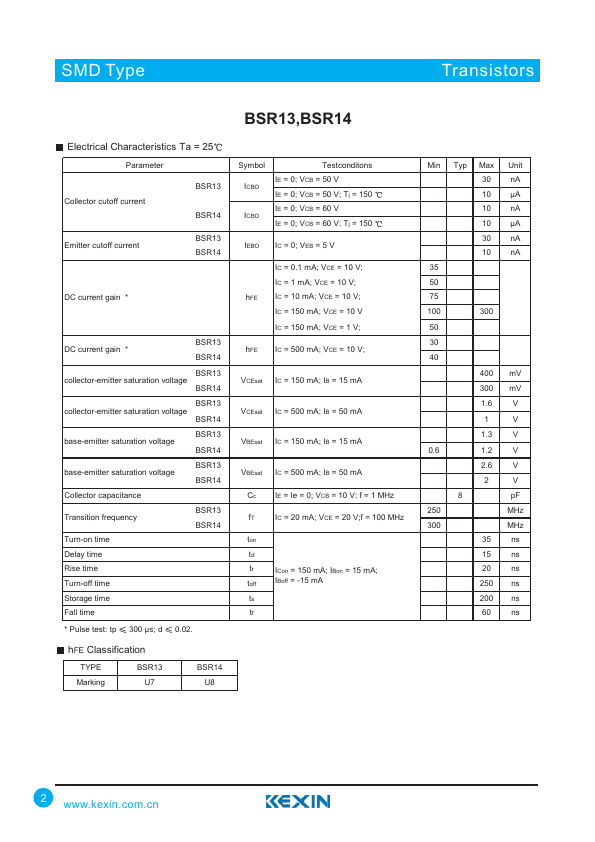

Ta = 25 Parameter Symbol BSR13 BSR14 Unit Collector-base voltage VCBO 60 75 V Collector-emitter voltage VCEO 30 40 V Emitter-base voltage VEBO 5 6 V Collector current IC 800 mA Peak collector current ICM 800 mA Peak base current IBM 200 mA Total power dissipation Ptot 250 mW Storage temperature Tstg -65 to +150 Junction temperature Tj 150 Operating ambient temperature Ramb -65 to +150 Thermal resistance from junction to ambient * Rth j-a 500 K/W * Transistor mounted on an FR4 printed-circuit board. 0-0.1 +0.1 0.38 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1+0.05 -0.01 1.Base 2.Emitter 3.collector 1 SMD Type TransistIoCrs BSR13,BSR14ELECTRICAL CHARACTERISTICS
Ta = 25 Parameter Collector cutoff current BSR13 BSR14 Emitter cutoff current BSR13 BSR14 DC current gain * DC current gain * BSR13 BSR14 BSR13 collector...
