Kexin Electronics CES388
Switching Diodes
| Part No. | CES388 |
|---|---|
| Datasheet | CES388 Download |
| Manufacturer | Kexin Electronics |
| Description | Switching Diodes |
| Buy | Stock & Price |

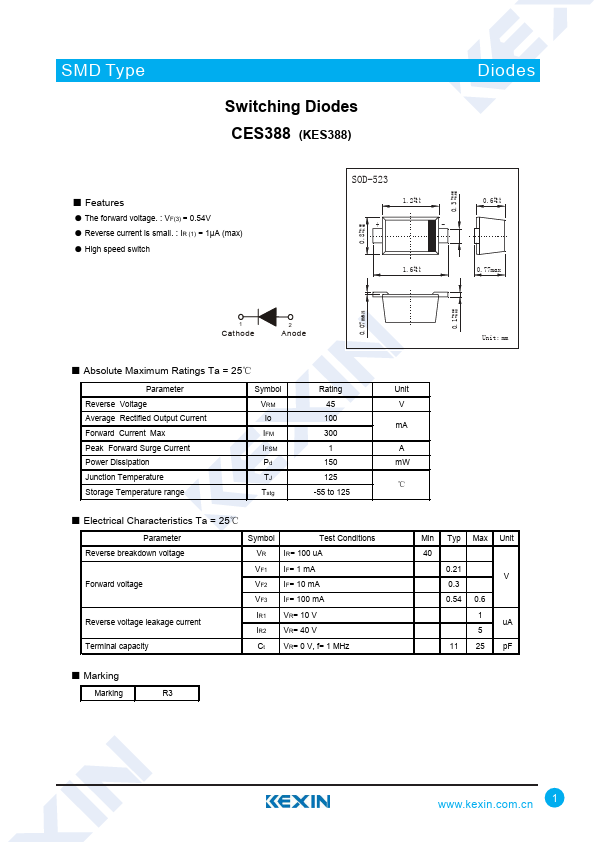

FEATURES
● The forward voltage. : VF(3) = 0.54V● Reverse current is small. : IR (1) = 1μA (max)
● High speed switch SOD-523 1.2 +0.1 -0.1 + - +0.05 0.3 -0.05 0.6 +0.1 -0.1 +0.05 0.8 -0.05 1.6 +0.1 -0.1 0.77max +0.05 0.1 -0.02 0.07max 1 Cathode 2 Anode Unit: mm
●
ABSOLUTE MAXIMUM RATINGS
Ta = 25℃ Parameter Reverse Voltage Average Rectified Output Current Forward Current Max Peak Forward Surge Current Power Dissipation Junction Temperature Storage Temperature range Symbol VRM Io IFM IFSM Pd TJ Tstg Rating 45 100 300 1 150 125 -55 to 125 Unit V mA A mW ℃●
ELECTRICAL CHARACTERISTICS
Ta = 25℃ Parameter Reverse breakdown voltage Forward voltage Reverse voltage leakage current Terminal capacity Symbol Test Conditions VR IR= 100 uA VF1 IF= 1 mA VF2 IF= 10 mA VF3 IF= 100 mA IR1 VR= 10 V IR2 VR= 40 V Ct VR= 0 V, f= 1 MHz Min Typ Max Unit 40 0.21 V 0.3 0.54 0.6 1 uA 5 11 25 pF● Marking Marking R3 1 SMD Type

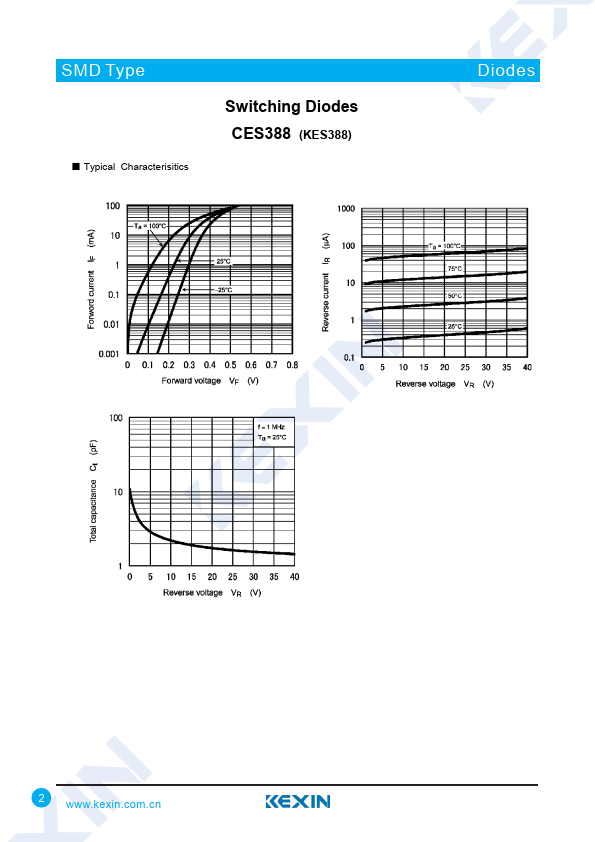

● Typical Characterisitics Switching Diodes CES388 (KES388) Diodes 2
