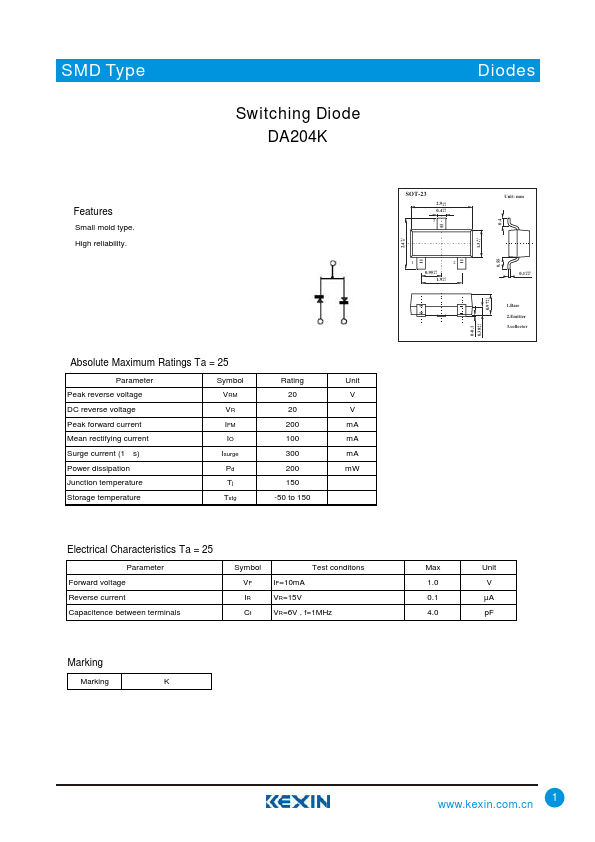

DA204K
Features
Small mold type. High reliability.
+0.1 2.4 -0.1
SOT-23
2.9+0.1 -0.1
0.4+0.1 -0.1
0.95+0.1 -0.1 1.9+0.1 -0.1
Absolute Maximum Ratings Ta = 25
Parameter Peak reverse voltage DC reverse voltage Peak forward current Mean rectifying current Surge current (1 s) Power dissipation Junction temperature Storage temperature
Symbol
Rating
Unit
200 m A
100 m A
Isurge
300 m A
Pd
200 m W
Tj
Tstg
-50 to 150
0-0.1 +0.1 0.38
-0.1
+0.1 1.3 -0.1
+0.1 0.97 -0.1
Unit: mm
0.1+0.05 -0.01
1.Base 2.Emitter 3.collector
Electrical Characteristics Ta = 25
Parameter Forward voltage Reverse current Capacitence between...
