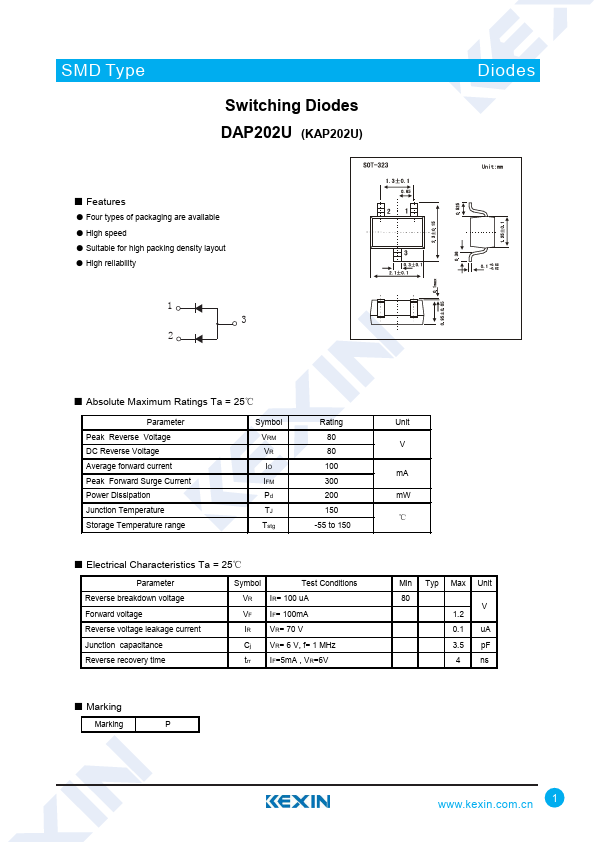

DAP202U
Features
- Four types of packaging are available
- High speed
- Suitable for high packing density layout
- High reliability
1 3
- Absolute Maximum Ratings Ta = 25℃
Parameter Peak Reverse Voltage DC Reverse Voltage Average forward current Peak Forward Surge Current Power Dissipation Junction Temperature Storage Temperature range
Symbol VRM VR IO IFM Pd TJ Tstg
Rating 80 80 100 300 200 150
-55 to 150
- Electrical Characteristics Ta = 25℃
Parameter Reverse breakdown voltage Forward voltage Reverse voltage leakage current Junction capacitance Reverse recovery time
Symbol
Test Conditions
VR IR= 100 u A
VF IF= 100m A
VR= 70 V
Cj VR= 6 V, f= 1 MHz trr
IF=5m A , VR=6V
Unit V m A m W ℃
Min Typ Max Unit 80
V 1.2 0.1 u A 3.5 p F 4 ns
- Marking
Marking
.kexin..cn 1
SMD Type
Diodes
Switching Diodes
DAP202U (KAP202U)

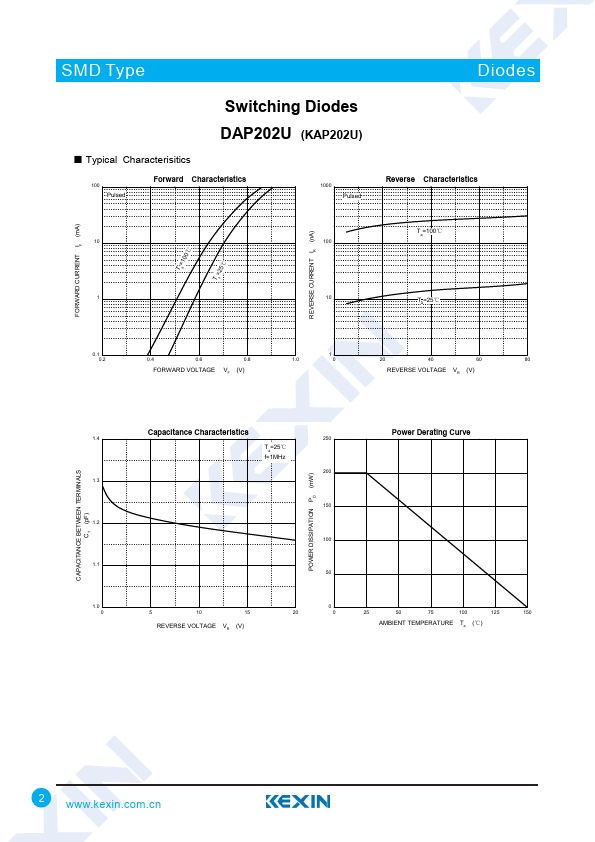

- Typical Characterisitics
Pulsed
Forward Characteristics
Pulsed
Reverse Characteristics...
