DMG1013T - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-20V.
  • ID =-0.46 A.
  • RDS(ON) ＜ 0.7Ω (VGS =-4.5V).
  • RDS(ON) ＜ 0.9Ω (VGS =-2.5V).
  • RDS(ON) ＜ 1.3Ω (VGS =-1.8V).
  • ESD Protected Up To 3KV Drain SOT-523 1.6 +0.1 -0.1 1.0 +0.1 -0.1 0.2 +0.05 -0.05 2 1 Unit:mm 0.15±0.05 0.55 (REF. ) 0.8±0.1 + 1.6 0.15 -0.15 0.36±0.1 3 0.5 +0.1 -0.1 0.3±0.05 +0.05 0.75 -0.05 + 0.8 0.1 -0.1 1.Gate 2.Source 3.Drain Gate Gate Protection Diode Source.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
DMG1013T P-Channel MOSFET Diodes
DMG1013TQ 20V P-CHANNEL MOSFET Diodes
DMG1013UW P-Channel MOSFET Diodes
DMG1013UWQ P-Channel MOSFET Diodes
DMG1012T N-Channel MOSFET Diodes

Other Datasheets by Kexin Semiconductor

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

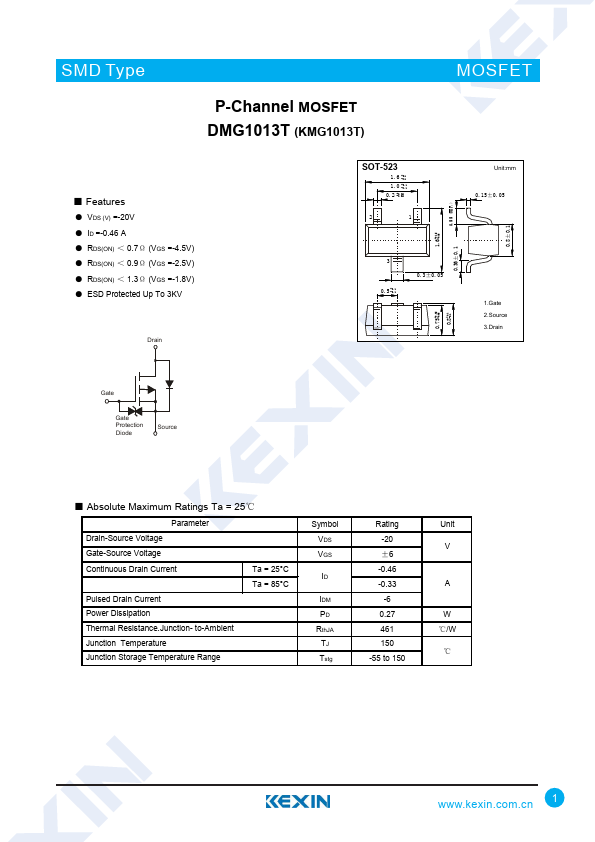

SMD Type P-Channel MOSFET DMG1013T (KMG1013T) MOSFET ■ Features ● VDS (V) =-20V ● ID =-0.46 A ● RDS(ON) ＜ 0.7Ω (VGS =-4.5V) ● RDS(ON) ＜ 0.9Ω (VGS =-2.5V) ● RDS(ON) ＜ 1.3Ω (VGS =-1.8V) ● ESD Protected Up To 3KV Drain SOT-523 1.6 +0.1 -0.1 1.0 +0.1 -0.1 0.2 +0.05 -0.05 2 1 Unit:mm 0.15±0.05 0.55 (REF.) 0.8±0.1 + 1.6 0.15 -0.15 0.36±0.1 3 0.5 +0.1 -0.1 0.3±0.05 +0.05 0.75 -0.05 + 0.8 0.1 -0.1 1.Gate 2.Source 3.Drain Gate Gate Protection Diode Source ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Ta = 25°C Pulsed Drain Current Power Dissipation Thermal Resistance.
