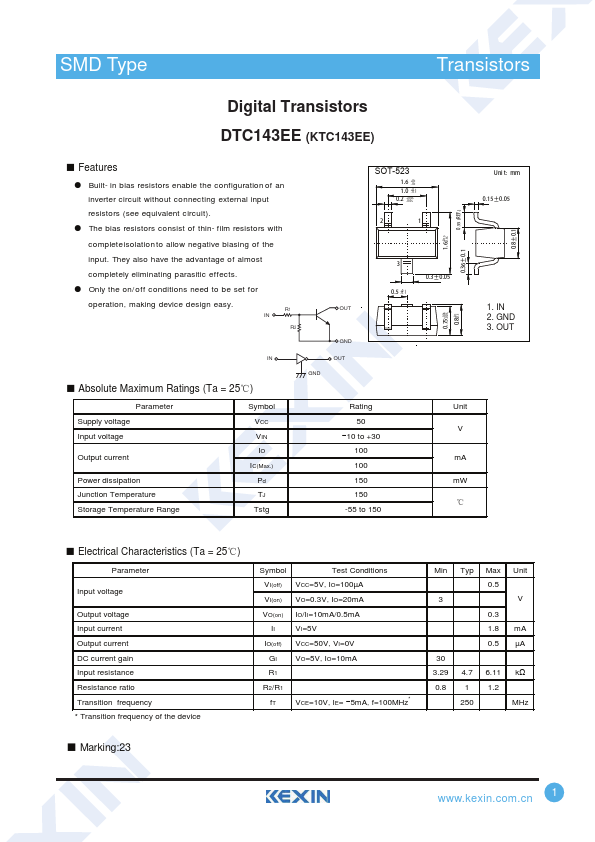

Kexin Electronics DTC143EE
Digital Transistors
| Part No. | DTC143EE |
|---|---|
| Datasheet | DTC143EE Download |
| Manufacturer | Kexin Electronics |
| Description | Digital Transistors |
| Buy | Stock & Price |
FEATURES
● Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit).● The bias resistors consist of thin-film resistors with completeisolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects.
● Only the on/off conditions need to be set for operation, making device design easy. R1 IN R2 SOT-523 OUT GND IN OUT GND
●
ABSOLUTE MAXIMUM RATINGS
(Ta = 25℃) Parameter Symbol Rating Unit Supply voltage Input voltage VCC 50 V VIN −10 to +30 Output current IO 100 mA IC(Max.) 100 Power dissipation Pd 150 mW Junction Temperature TJ 150 ℃ Storage Temperature Range Tstg -55 to 150 6OJ U N N 1. IN 2. GND 3. OUT●
ELECTRICAL CHARACTERISTICS
(Ta = 25℃) Parameter Input voltage Output voltage Input current Output current DC current gain Input resistance Resistance ratio Transition frequency * Transition frequency of the device Symbol Test Conditions VI...
