DTC144EUA Datasheet Digital Transistors

Manufacturer: Kexin Semiconductor

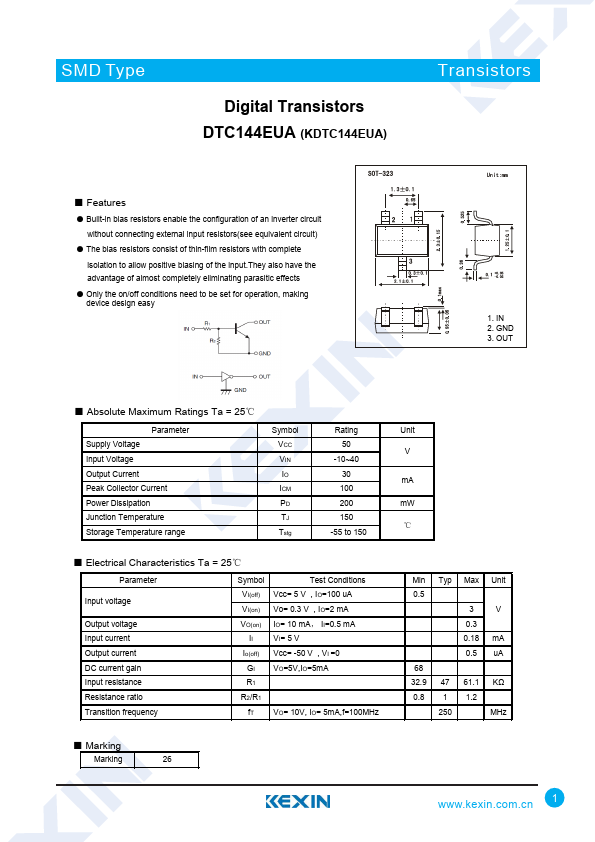

Overview: SMD Type Digital Transistors DTC144EUA (KDTC144EUA) Transistors.

Key Features

  • s.
  • Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors(see equivalent circuit).
  • The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects.
  • Only the on/off conditions need to be set for operation, making device design easy 1. IN 2. GND 3. OUT.
  • Absolute Maximum Ratings Ta = 25℃ P.
