Kexin Electronics ESD5Z5C
TVS Diodes
| Part No. | ESD5Z5C |
|---|---|
| Datasheet | ESD5Z5C Download |
| Manufacturer | Kexin Electronics |
| Description | TVS Diodes |
| Buy | Stock & Price |

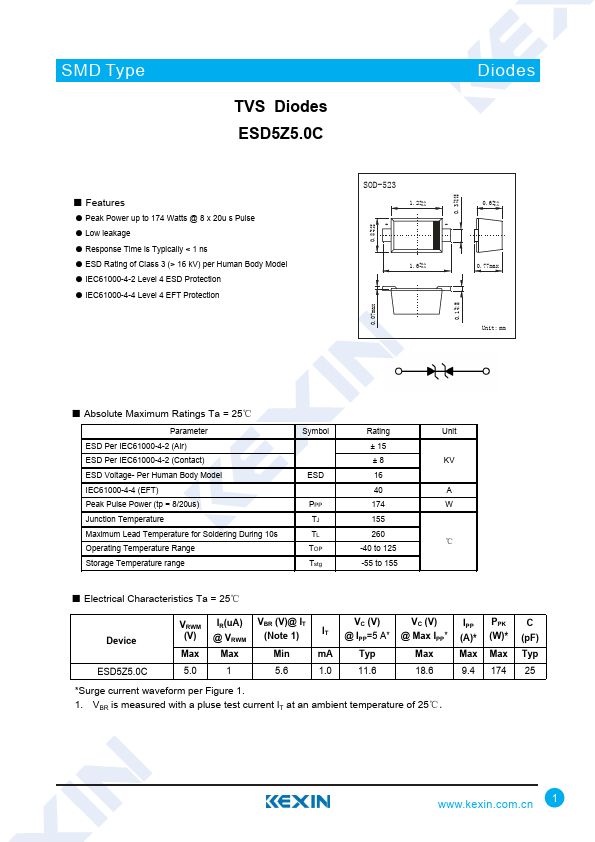

FEATURES
● Peak Power up to 174 Watts @ 8 x 20u s Pulse● Low leakage
● Response Time is Typically < 1 ns
● ESD Rating of Class 3 (> 16 kV) per Human Body Model
● IEC61000-4-2 Level 4 ESD Protection
● IEC61000-4-4 Level 4 EFT Protection SOD-523 1.2 +0.1 -0.1 + - +0.05 0.3 -0.05 0.6 +0.1 -0.1 +0.05 0.8 -0.05 1.6 +0.1 -0.1 0.77max +0.05 0.1 -0.02 0.07max Unit: mm
●
ABSOLUTE MAXIMUM RATINGS
Ta = 25℃ Parameter Symbol Rating Unit ESD Per IEC61000-4-2 (Air) ± 15 ESD Per IEC61000-4-2 (Contact) ±8 KV ESD Voltage- Per Human Body Model ESD 16 IEC61000-4-4 (EFT) 40 A Peak Pulse Power (tp = 8/20us) PPP 174 W Junction Temperature TJ 155 Maximum Lead Temperature for Soldering During 10s TL 260 ℃ Operating Temperature Range TOP -40 to 125 Storage Temperature range Tstg -55 to 155●
ELECTRICAL CHARACTERISTICS
Ta = 25℃ Device VRWM IR(uA) VBR (V)@ IT (V) @ VRWM (Note 1) IT VC (V) VC (V) IPP PPK C @ IPP=5 A* @ Max IPP* (A)* (W)* (pF) Max Max Min mA Typ Max Max Max Typ ESD5Z5.0C 5.0 1 5.6 1.0 11.6 18.6 9.4 174 25 *Surge current waveform per Figure 1.
