Download ESD5Z5C Datasheet PDF

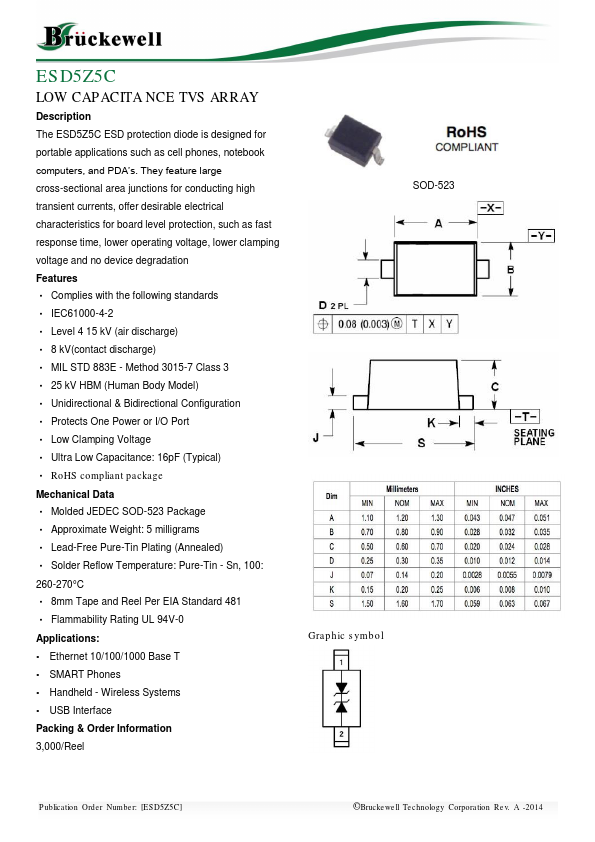

ESD5Z5C datasheet preview

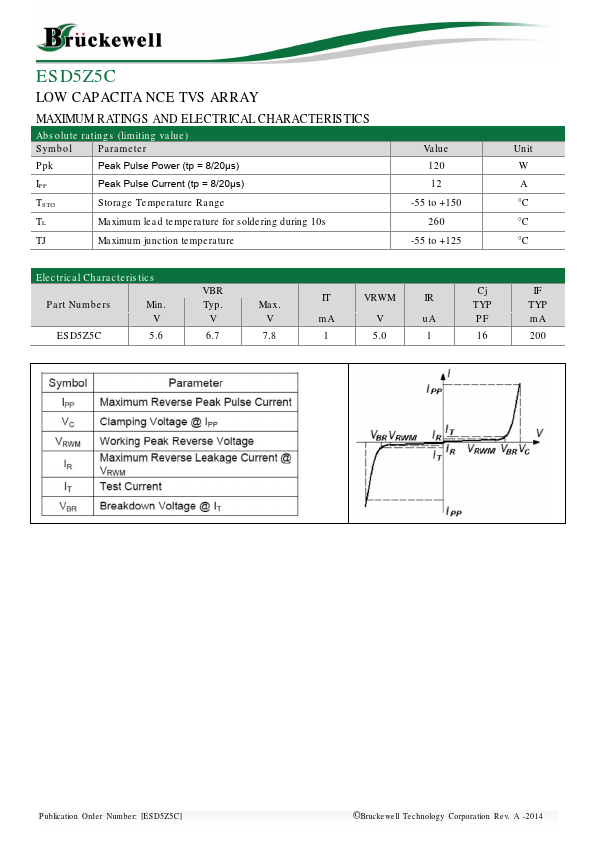

ESD5Z5C page 2
Page 2

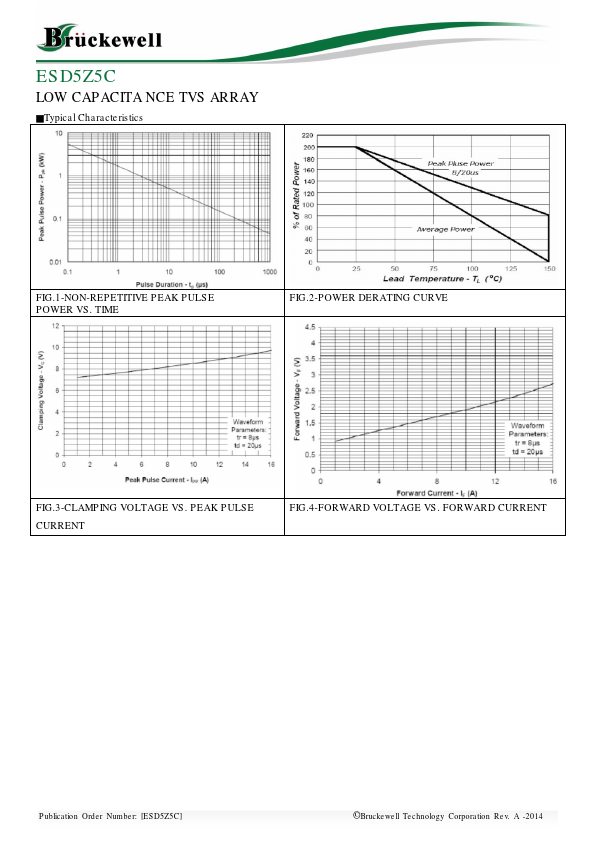

ESD5Z5C page 3
Page 3

ESD5Z5C Key Features

  • plies with the following standards
  • IEC61000-4-2
  • Level 4 15 kV (air discharge)
  • 8 kV(contact discharge)
  • MIL STD 883E
  • Method 3015-7 Class 3
  • 25 kV HBM (Human Body Model)
  • Unidirectional & Bidirectional Configuration
  • Protects One Power or I/O Port
  • Low Clamping Voltage

Other ESD5Z5C Datasheets

Manufacturer Part Number Description
Kexin Logo Kexin Semiconductor ESD5Z5C TVS Diodes
GME Logo Galaxy Microelectronics ESD5Z5.0 Single Line TVS Diode
CITC Logo Chip Integration Technology ESD5Z5.0 200mW Surface Mount Bi-Directional TVS
Kexin Logo Kexin Semiconductor ESD5Z5.0 TVS Diodes
Formosa MS Logo Formosa MS ESD5Z5.0 SMD Transient Voltage Suppressor

View all ESD5Z5C datasheets →

ESD5Z5C Description

The ESD5Z5C ESD protection diode is designed for portable applications such as cell phones, notebook puters, and PDAʼs.

ESD5Z5C Applications

  • plies with the following standards
