FEATURES
ƽ Equivalent to 0402 package ƽ 120W peak pulse power ƽ Small package for use in portable electionics ƽ Standoff voltage : 5V ƽ Low leakage current Complies with the following standards IEC61000-4-2 Level 4 15 kV (air discharge) 8 kV(contact discharge) MIL STD 883E - Method 3015-7 Class 3 25 kV HBM (Human Body Model) SOD882 Unit:mm 1 2 ƵABSOLUTE MAXIMUM RATINGS
Parameter IEC 61000-4-2(ESD) Contact Peak Pulse Power Peak Pulse Power Junction Temperature Storage Temperature range Symbol Value Unit 8 KV PPK 120 W IPP 12 A Tj 150 ć Tstg -55 to +150 1 SMD Type TVS Diodes ESDALC6V1 ƵELECTRICAL CHARACTERISTICS

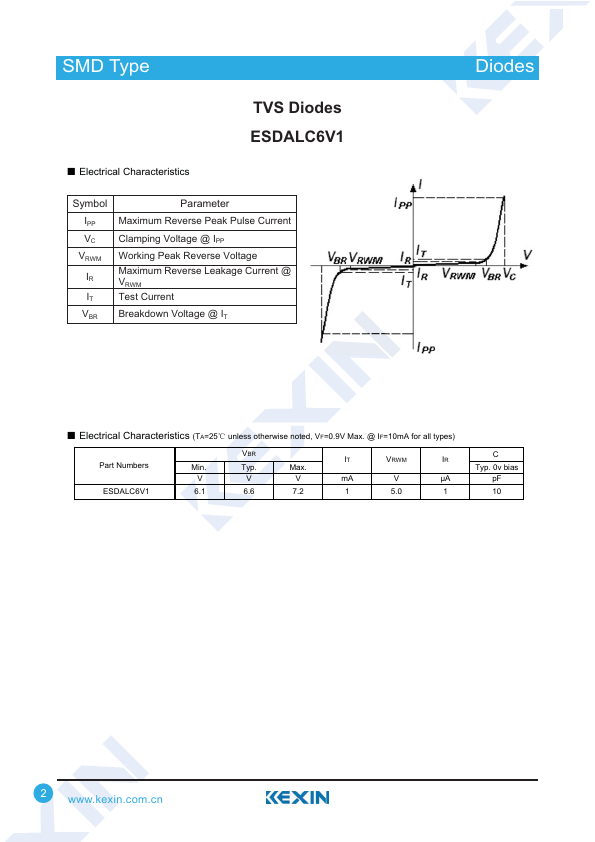

Symbol Parameter IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP VRWM IR IT Working Peak Reverse Voltage Maximum Reverse Leakage Current @ VRWM Test Current VBR Breakdown Voltage @ IT TransDisiotodress ƵELECTRICAL CHARACTERISTICS
(TA=25ć unless otherwise noted, VF=0.9V Max. @ IF=10mA for all types) Part Numbers ESDALC6V1 VBR Min. Typ. Max. IT VRWM IR V V V mA V ȝA 6.1 6.6 7.2 1 5.0 1 C Typ.
