ESDALC6V1M3R
ESDALC6V1M3R is TVS Diodes manufactured by Kexin Semiconductor.
Features

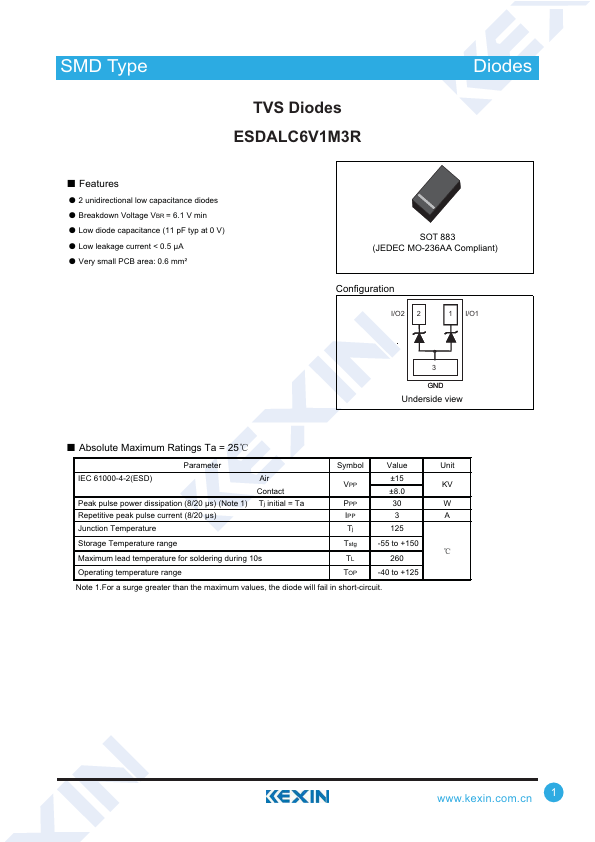

ƽ 2 unidirectional low capacitance diodes ƽ Breakdown Voltage VBR = 6.1 V min ƽ Low diode capacitance (11 p F typ at 0 V) ƽ Low leakage current < 0.5 μA ƽ Very small PCB area: 0.6 mm²
SOT 883 (JEDEC MO-236AA pliant)
Configuration
I/O2 12
212 I/O1
G3ND
Underside view
Ƶ Absolute Maximum Ratings Ta = 25ć
Parameter
Symbol
Value
Unit
IEC 61000-4-2(ESD)
Peak pulse power dissipation (8/20 μs) (Note 1) Repetitive peak pulse current (8/20 μs)
Air Contact Tj initial = Ta
±15
±8.0
Junction Temperature
Tj
Storage Temperature range Maximum lead temperature for soldering during 10s
Tstg
-55 to +150
ć
Operating temperature range
-40 to +125
Note 1.For a surge greater than the maximum values, the diode will fail in short-circuit.
.kexin..cn 1
SMD Type
Trans Disiotodress
TVS Diodes ESDALC6V1M3R

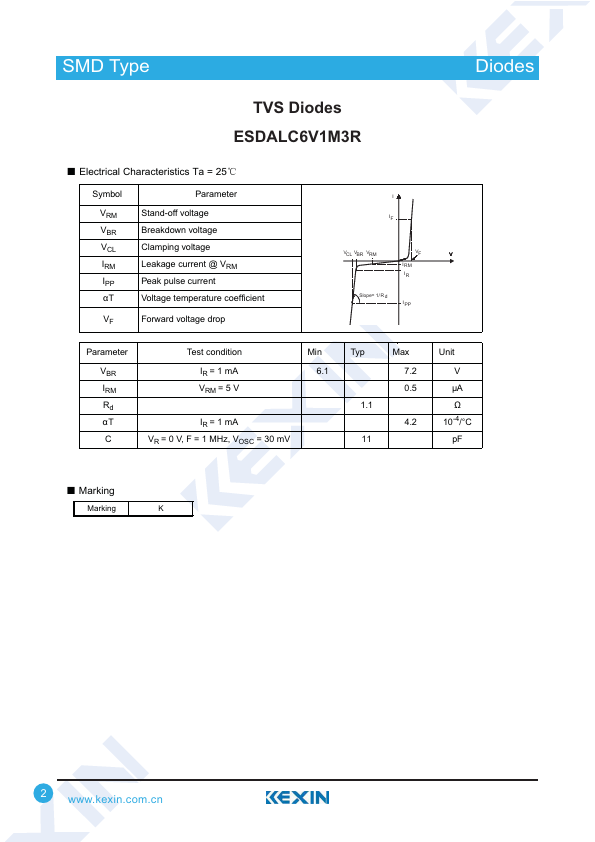

Ƶ Electrical Characteristics Ta =...
