ESDALC6V1M3 - Dual low capacitance TRANSIL array

General Description

The ESDALC6V1M3 is a monolithic array designed to protect 1 line or 2 lines against ESD transients.

The device is ideal for applications where both reduced line capacitance and board space saving are required.

Key Features

  • www. DataSheet4U. com Configuration I/O2 1 2 12 2 I/O1 2 unidirectional low capacitance.

📥 Download Datasheet

Full PDF Text Transcription for ESDALC6V1M3 (Reference)

Note: Below is a high-fidelity text extraction (approx. 800 characters) for ESDALC6V1M3. For precise diagrams, and layout, please refer to the original PDF.

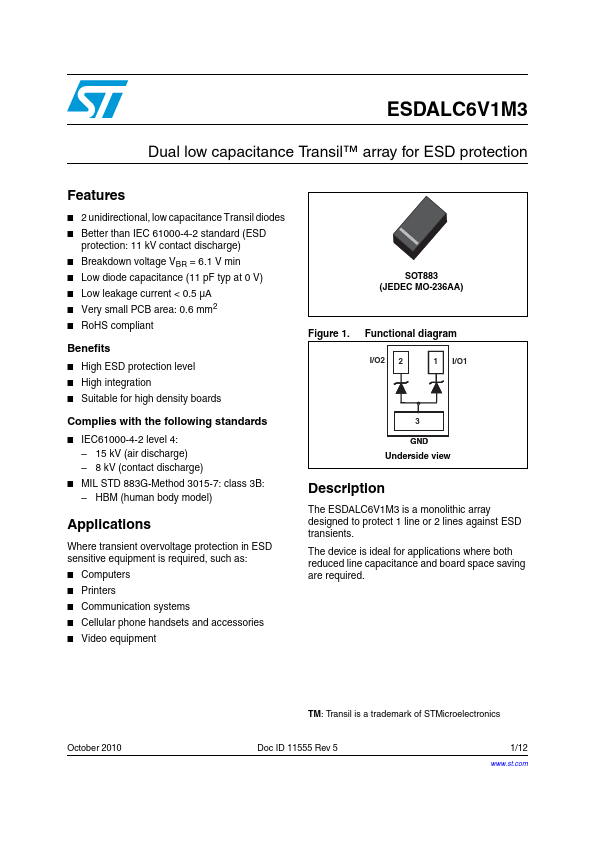

ESDALC6V1M3 Dual low capacitance TRANSIL™ array for ESD protection Main product applications Where transient overvoltage protection in ESD sensitive equipment is required...

View more extracted text

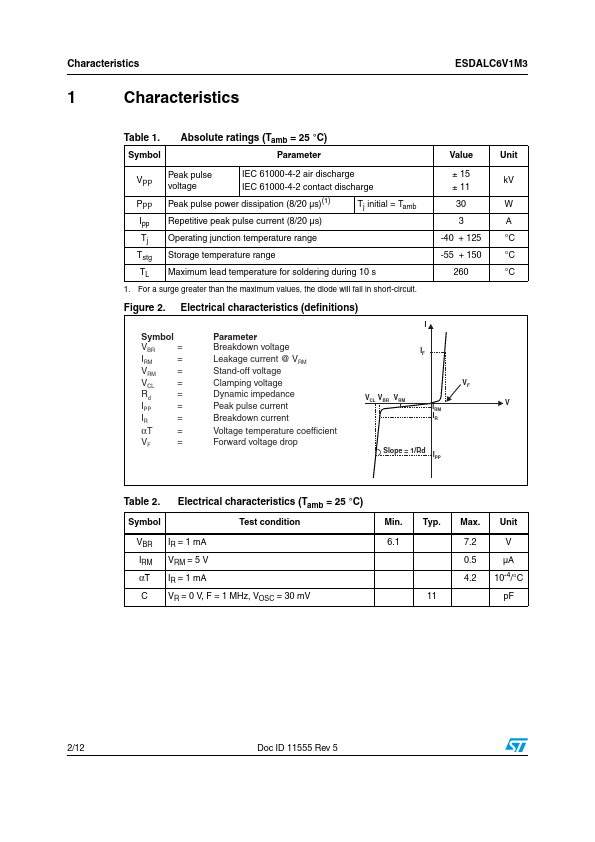

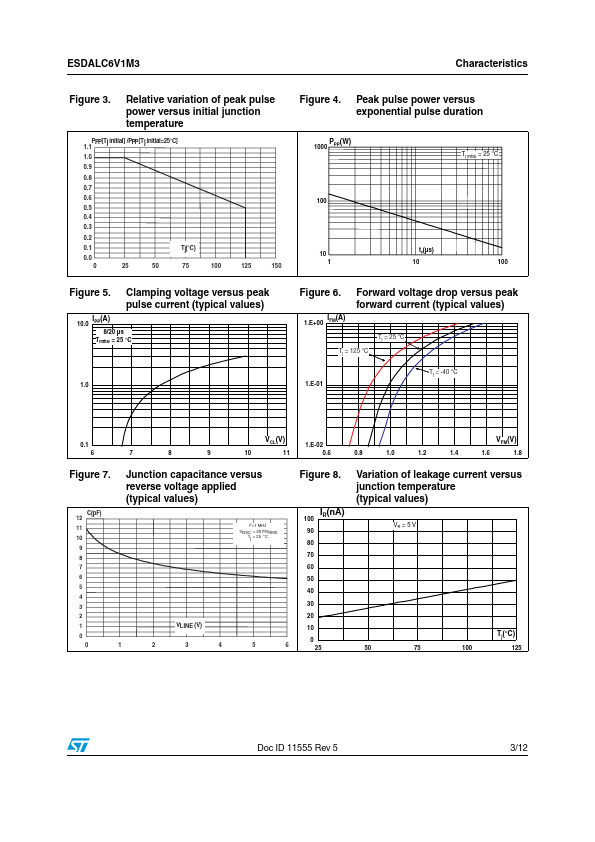

ransient overvoltage protection in ESD sensitive equipment is required, such as: ■ ■ ■ ■ ■ Computers Printers Communication systems Cellular phone handsets and accessories Video equipment SOT 883 (JEDEC MO-236AA Compliant) Features ■ ■ ■ www.DataSheet4U.com Configuration I/O2 1 2 12 2 I/O1 2 unidirectional low capacitance TRANSIL diodes Breakdown Voltage VBR = 6.1 V min Low diode capacitance (11 pF typ at 0 V) Low leakage current < 0.5 µA Very small PCB area: 0.6 mm² RoHS compliant ■ ■ ■ GND 3 GND Underside view Description The ESDALC6V1M3 is a monolithic array designed to protect 1 line or 2 lines against ESD transients.
