FCX1051A
Features
2W power dissipation. 10A peak pulse current. Excellent HFE characteristics up to 10 Amps. Extremely low saturation voltage E.g. 17mv Typ. Extremely low equivalent on-resistance. RCE(sat) 57mÙ at 3A.
Absolute Maximum Ratings Ta = 25
Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Continuous collector current Peak pulse current Power dissipation Operating and storage temperature range
Symbol
Rating
Unit
VCBO
VCEO
VEBO
Ptot
Tj,Tstg
-55 to +150
.kexin..cn 1
SMD Type

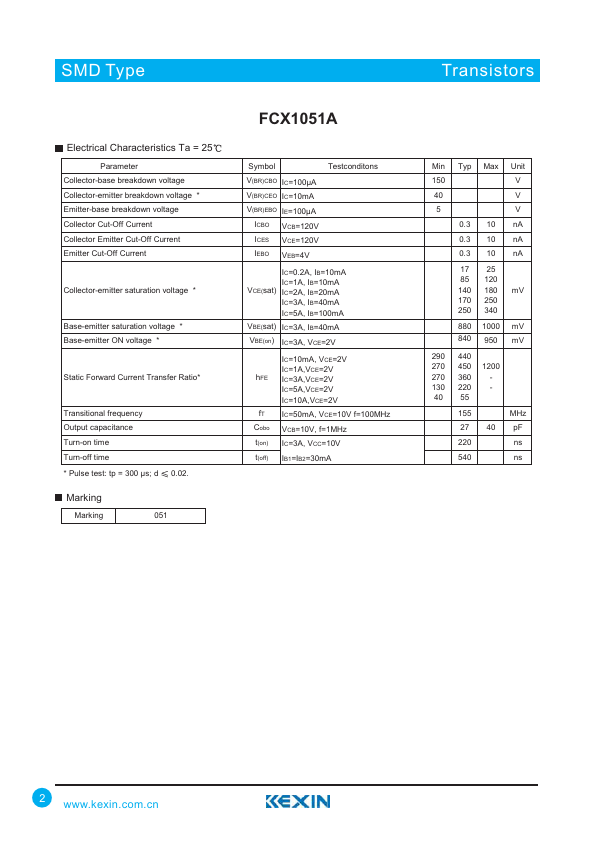

Electrical Characteristics Ta = 25
Parameter Collector-base breakdown voltage Collector-emitter breakdown voltage
- Emitter-base breakdown voltage Collector Cut-Off Current Collector Emitter Cut-Off Current Emitter Cut-Off Current
Collector-emitter saturation voltage
- Base-emitter saturation voltage
- Base-emitter ON voltage
- Static Forward Current Transfer Ratio-
Transitional frequency Output capacitance Turn-on time...
