FCX1051A - NPN SILICON POWER TRANSISTOR

Zetex (now Diodes Incorporated)

Key Features

FCX1051A C.
2W POWER.

FCX1051A npn silicon power transistor by Zetex (now Diodes Incorporated) - Datasheet Preview

Datasheet Details

Part number	FCX1051A
Manufacturer	Zetex (now Diodes Incorporated)
File Size	49.59 KB
Description	NPN SILICON POWER TRANSISTOR
Datasheet	FCX1051A Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
FCX1051A	40V NPN MEDIUM POWER TRANSISTOR	DIODES
FCX1053A	75V NPN MEDIUM POWER TRANSISTOR	Diodes
FCX1047A	10V NPN MEDIUM POWER TRANSISTOR	Diodes
FCX1147A	PNP Silicon Power Switching Transistor	Kexin
FCX1151A	-40V PNP POWER TRANSISTOR	Diodes

Other Datasheets by Zetex (now Diodes Incorporated)

Part Number	Description
FCX1147A	PNP SILICON POWER (SWITCHING) TRANSISTOR
FCX1149A	PNP SILICON POWER (SWITCHING) TRANSISTOR
FCX589	PNP SILICON PLANAR MEDIUM POWER HIGH PERFORMANCE TRANSISTOR
FCX596	PNP SILICON PLANAR HIGH VOLTAGE TRANSISTOR
FCX617	NPN SILICON POWER (SWITCHING) TRANSISTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

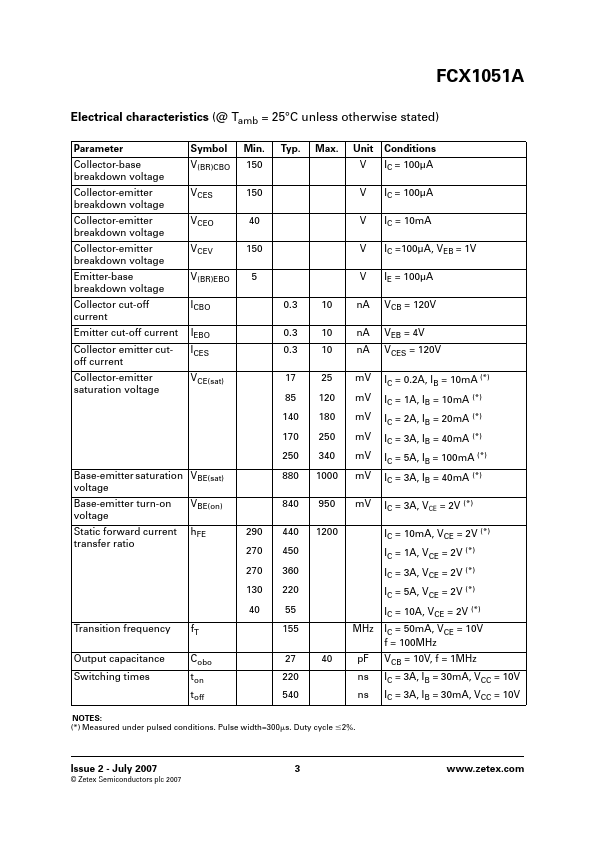

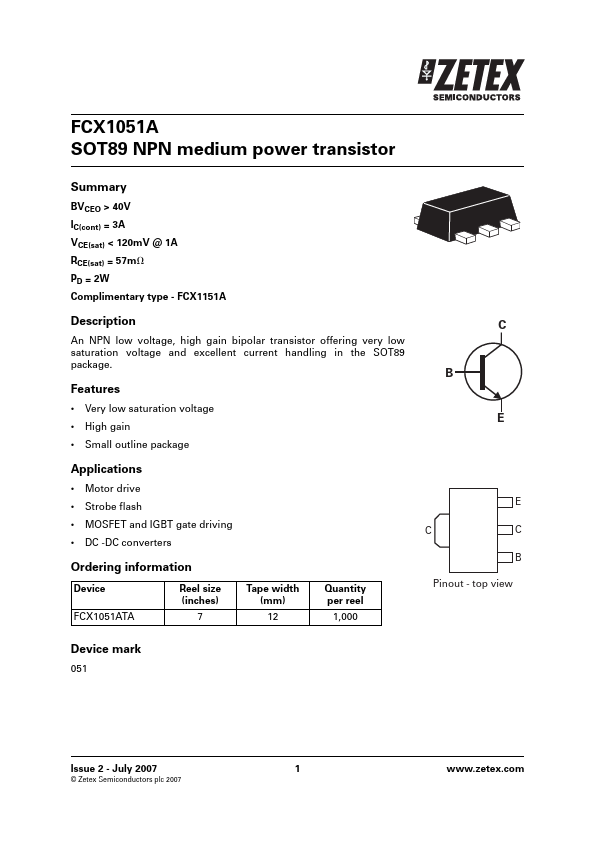

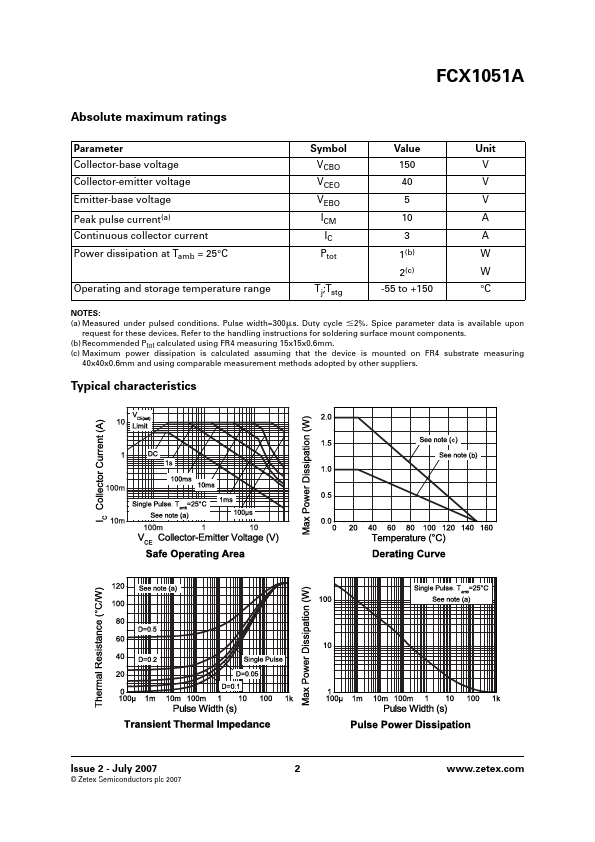

SOT89 NPN SILICON POWER (SWITCHING) TRANSISTOR ISSSUE 1 - DECEMBER 1998 FEATURES FCX1051A C * * * * * 2W POWER DISSIPATION 10A Peak Pulse Current Excellent HFE Characteristics up to 10 Amps Extremely Low Saturation Voltage E.g. 17mv Typ. Extremely Low Equivalent On-resistance; RCE(sat) 57mΩ at 3A FCX1151A 051 E C B Complimentary Type Partmarking Detail - ABSOLUTE MAXIMUM RATINGS. PARAMETER Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Peak Pulse Current ** Continuous Collector Current Power Dissipation at Tamb=25°C Operating and Storage Temperature Range SYMBOL VCBO VCEO VEBO ICM IC Ptot Tj:Tstg VALUE 150 40 5 10 3 1 † 2 ‡ -55 to +150 UNIT V V V A A W W °C † recommended Ptot calculated using FR4 measuring 15x15x0.
