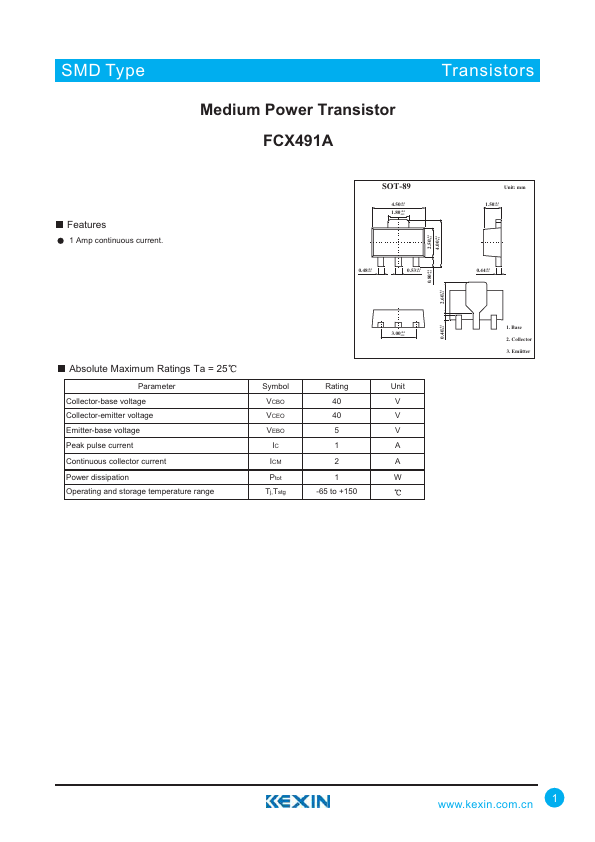

FCX491A Datasheet PDF

FEATURES

1 Amp continuous current. SOT-89 4.50+0.1 -0.1 1.80+0.1 -0.1 0.48+0.1 -0.1 0.53+0.1 -0.1 +0.1 2.50 -0.1 +0.1 4.00 -0.1 Unit: mm 1.50+0.1 -0.1 0.44+0.1 -0.1 +0.1 0.80 -0.1 +0.1 2.60 -0.1 +0.1 0.40 -0.1 3.00+0.1 -0.1

ABSOLUTE MAXIMUM RATINGS

Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Peak pulse current Continuous collector current Power dissipation Operating and storage temperature range Symbol Rating Unit VCBO 40 V VCEO 40 V VEBO 5 V IC 1 A ICM 2 A Ptot 1 W Tj,Tstg -65 to +150 1. Base 2. Collector 3. Emiitter 1 SMD Type

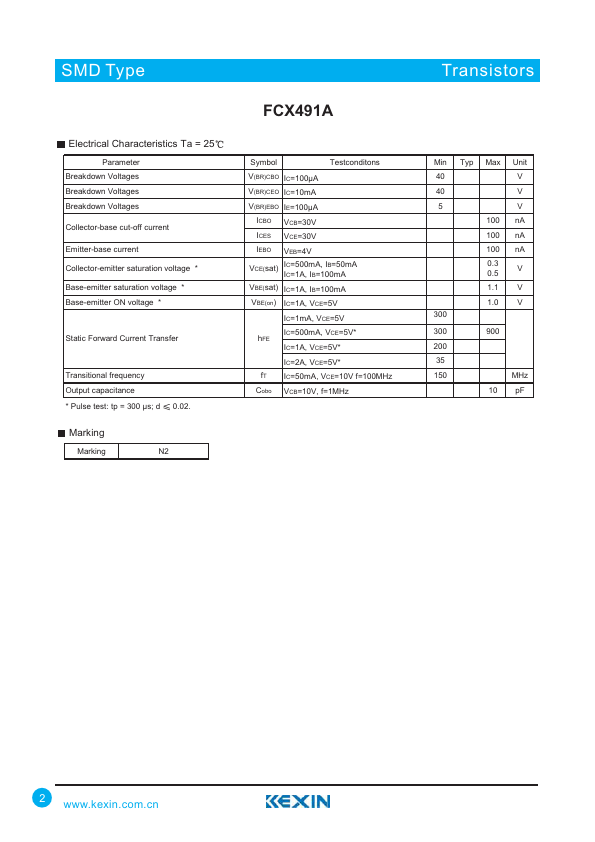

ELECTRICAL CHARACTERISTICS

Ta = 25 Parameter Breakdown Voltages Breakdown Voltages Breakdown Voltages Collector-base cut-off current Emitter-base current Collector-emitter saturation voltage * Base-emitter saturation voltage * Base-emitter ON voltage * Static Forward Current Transfer Transitional frequency Output capacitance * Pulse test: tp = 300 ìs; d 0.02. Marking Marking N2 FCX491A Symbol Testconditons V(BR)CBO IC...
