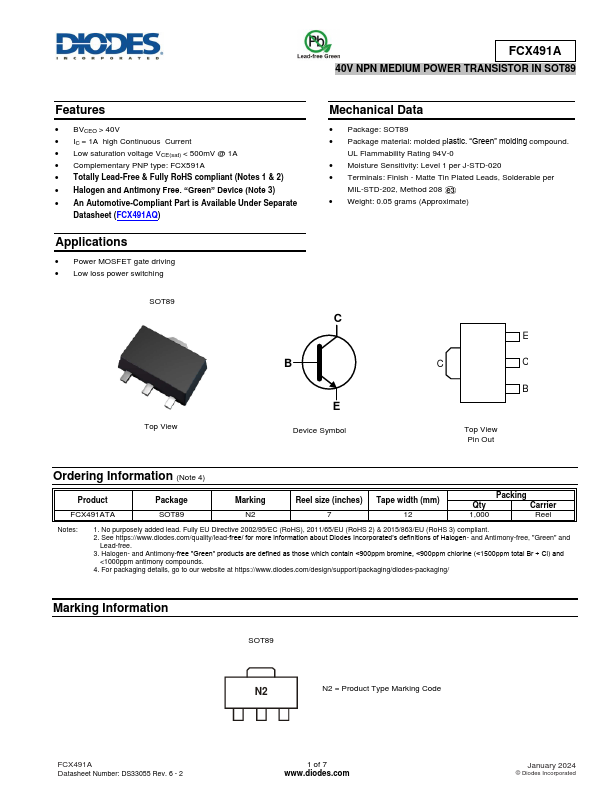

FCX491A
FCX491A is 40V NPN MEDIUM POWER TRANSISTOR manufactured by Diodes Incorporated.
40V NPN MEDIUM POWER TRANSISTOR IN SOT89
Features
- BVCEO > 40V
- IC = 1A high Continuous Current
- Low saturation voltage VCE(sat) < 500mV @ 1A
- plementary PNP type: FCX591A
- Totally Lead-Free & Fully RoHS pliant (Notes 1 & 2)
- Halogen and Antimony Free. “Green” Device (Note 3)
- An Automotive-pliant Part is Available Under Separate
Datasheet (FCX491AQ)
Applications
- Power MOSFET gate driving
- Low loss power switching
Mechanical Data
- Package: SOT89
- Package material: molded plastic. “Green” molding pound.
UL Flammability Rating 94V-0
- Moisture Sensitivity: Level 1 per J-STD-020
- Terminals: Finish
- Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method...
