FDC3612A Datasheet N-channel MOSFET

Manufacturer: Kexin Semiconductor

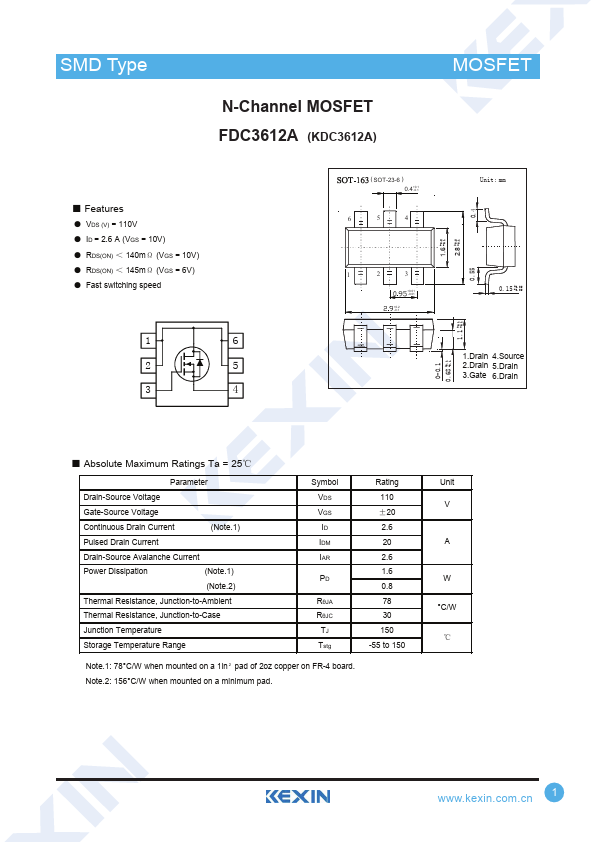

Overview: SMD Type N-Channel MOSFET FDC3612A (KDC3612A) TraMnOsiSsFtoErsT.

Key Features

  • s.
  • VDS (V) = 110V.
  • ID = 2.6 A (VGS = 10V).
  • RDS(ON) ＜ 140mΩ (VGS = 10V).
  • RDS(ON) ＜ 145mΩ (VGS = 6V).
  • Fast switching speed 1 6 2 5 3 4 0-0.1 +0.1 0.68 -0.1 ( SOT-23-6 ) 0.4+0.1 -0.1 6 5 4 0.4 Unit: mm +0.2 1.6 -0.1 +0.2 2.8 -0.1 0.55 1 2 3 +0.01 -0.01 +0.2 -0.1 +0.1 1.1 -0.1 0.15 +0.02 -0.02 1.Drain 4.Source 2.Drain 5.Drain 3.Gate 6.Drain.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Cu.
