FDMS2572 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 150V.
  • ID = 4.5 A (VGS = 10V).
  • RDS(ON) ＜ 47mΩ (VGS = 10V).
  • RDS(ON) ＜ 53mΩ (VGS = 6V) 1234 MLP 5X6 PIN 1 SSSG D DDDD 8765.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Symbol VDS VGS Continuous Drain Current Pulsed Drain Current (Note.1) ID IDM Drain-Source Avalanche Current Power Dissipation IAR (Note.1) PD (Note.2) Thermal Resistance. Junction- to-Ambient Junction Temperature Storage Temperature Range (.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FDMS2572 N-Channel UltraFET Trench MOSFET Fairchild Semiconductor
FDMS2572 N-Channel MOSFET ON Semiconductor
FDMS2502SDC N-Channel MOSFET Fairchild Semiconductor
FDMS2504SDC N-Channel MOSFET Fairchild Semiconductor
FDMS2506SDC N-Channel MOSFET Fairchild Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
FDMC3612 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

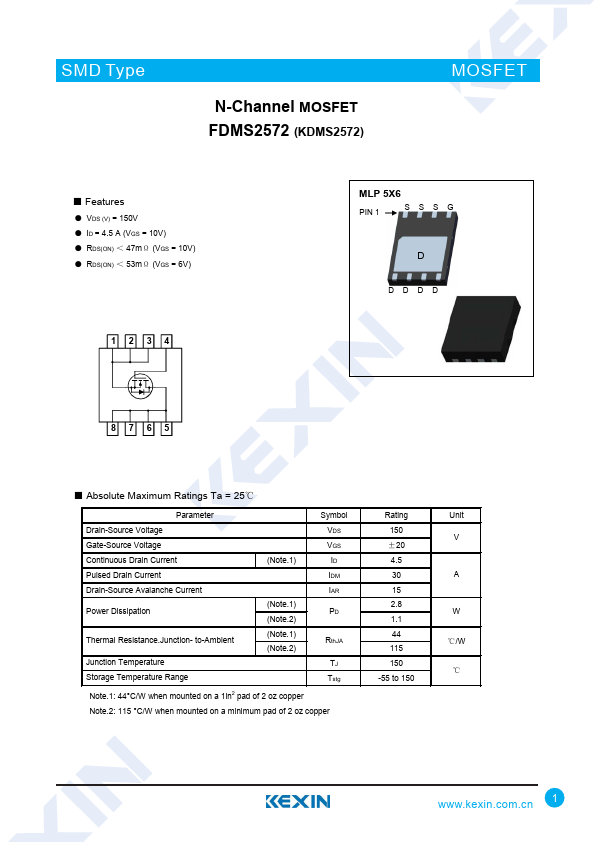

SMD Type N-Channel MOSFET FDMS2572 (KDMS2572) MOSFET ■ Features ● VDS (V) = 150V ● ID = 4.5 A (VGS = 10V) ● RDS(ON) ＜ 47mΩ (VGS = 10V) ● RDS(ON) ＜ 53mΩ (VGS = 6V) 1234 MLP 5X6 PIN 1 SSSG D DDDD 8765 ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Symbol VDS VGS Continuous Drain Current Pulsed Drain Current (Note.1) ID IDM Drain-Source Avalanche Current Power Dissipation IAR (Note.1) PD (Note.2) Thermal Resistance.Junction- to-Ambient Junction Temperature Storage Temperature Range (Note.1) (Note.2) RthJA TJ Tstg Note.1: 44°C/W when mounted on a 1in2 pad of 2 oz copper Note.2: 115 °C/W when mounted on a minimum pad of 2 oz copper Rating 150 ±20 4.5 30 15 2.8 1.1 44 115 150 -55 to 150 Unit V A W ℃/W ℃ www.kexin.com.
