FMG9A Datasheet Dual Digital Transistors

Manufacturer: Kexin Semiconductor

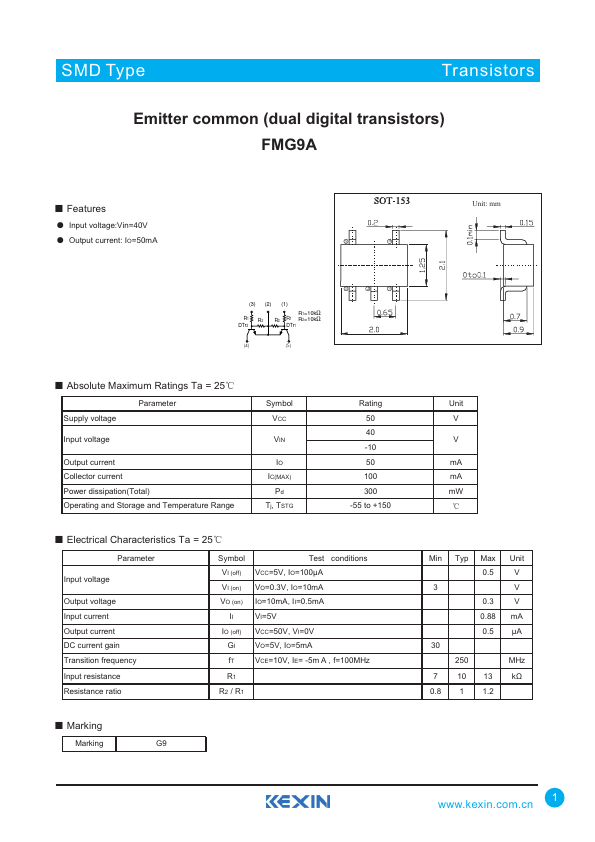

Overview: SMD Type TransistIoCrs Emitter common (dual digital transistors) FMG9A.

Datasheet Details

s.
Input voltage:Vin=40V.
Output current: IO=50mA 5 4 Unit: mm (3) (2) (1) R1 R2 DTr2 R1=10kΩ R2 R1 R2=10kΩ DTr1 (4) (5) 1 2 3.
Absolute Maximum Ratings Ta = 25℃ Supply voltage Parameter Input voltage Output current Collector current Power dissipation(Total) Operating and Storage and Temperature Range Symbol VCC VIN IO IC(MAX) Pd Tj, TSTG Rating 50 40 -10 50 100 300 -55 to +150.
Electrical Characteristics Ta = 25℃ Parameter Input voltage Output voltage Inp.
