FMMT458 Datasheet PDF

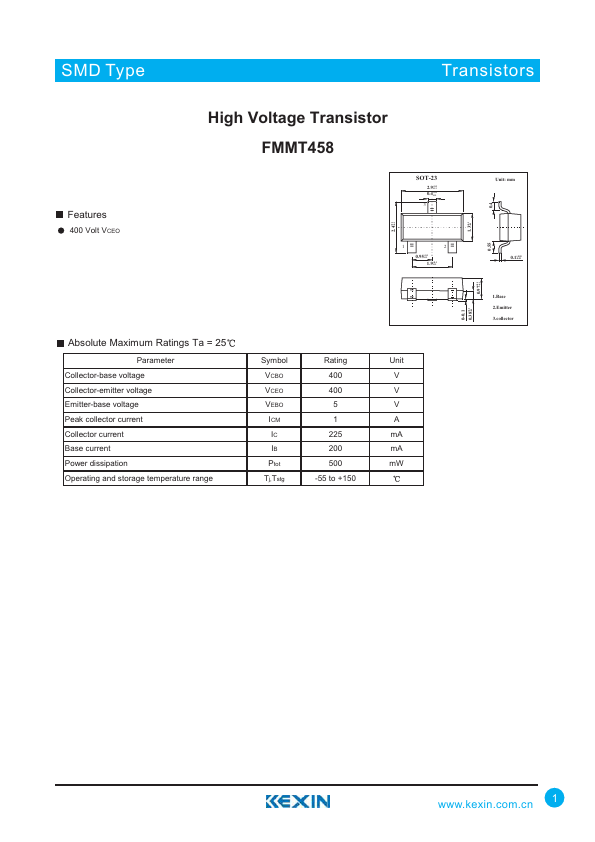

FEATURES

400 Volt VCEO High Voltage Transistor FMMT458 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 3 +0.1 2.4 -0.1 1 2 0.95+0.1 -0.1 1.9+0.1 -0.1

ABSOLUTE MAXIMUM RATINGS

Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Peak collector current Collector current Base current Power dissipation Operating and storage temperature range Symbol Rating Unit VCBO 400 V VCEO 400 V VEBO 5 V ICM 1 A IC 225 mA IB 200 mA Ptot 500 mW Tj,Tstg -55 to +150 0-0.1 +0.1 0.38 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1+0.05 -0.01 1.Base 2.Emitter 3.collector 1 SMD Type

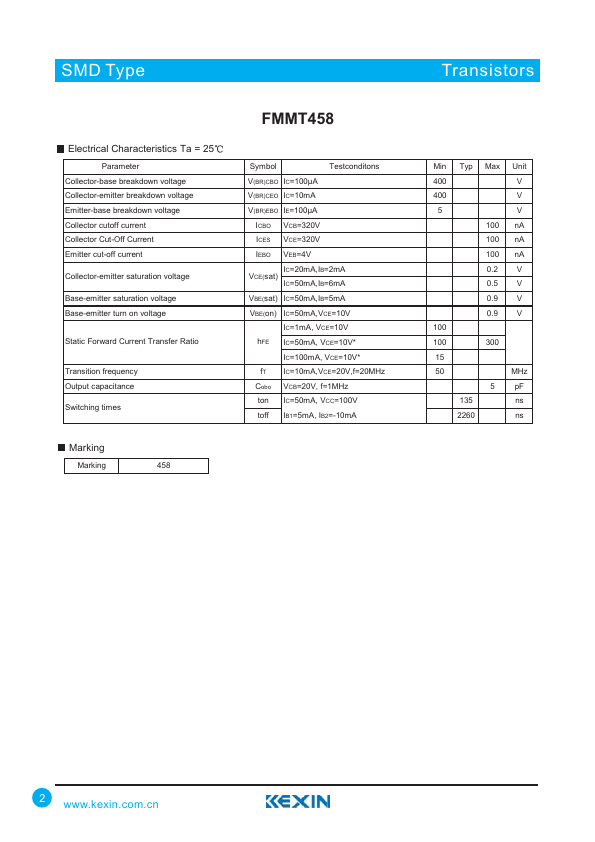

ELECTRICAL CHARACTERISTICS

Ta = 25 Parameter Collector-base breakdown voltage Collector-emitter breakdown voltage Emitter-base breakdown voltage Collector cutoff current Collector Cut-Off Current Emitter cut-off current Collector-emitter saturation voltage Base-emitter saturation voltage Base-emitter turn on voltage Static Forward Current Transfer Ratio Transition frequency Output capacitance Switching t...
