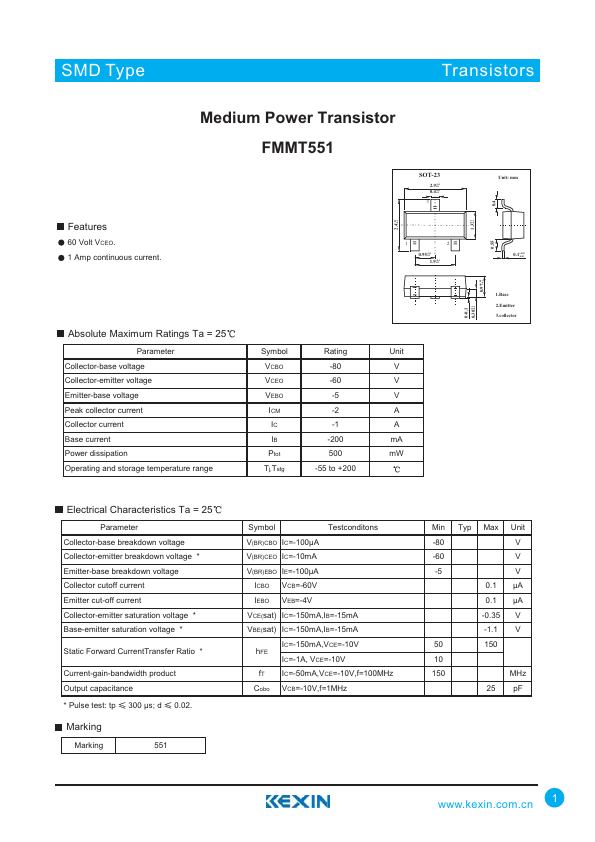

FMMT551
Features
60 Volt VCEO. 1 Amp continuous current.
Medium Power Transistor FMMT551
SOT-23
2.9+0.1 -0.1
0.4+0.1 -0.1
+0.1 2.4 -0.1
0.95+0.1 -0.1 1.9+0.1 -0.1
Absolute Maximum Ratings Ta = 25
Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Peak collector current Collector current Base current Power dissipation Operating and storage temperature range
Symbol
Rating
Unit
VCBO
-80
VCEO
-60
VEBO
-5
-2
-1
-200 m A
Ptot
500 m W
Tj,Tstg
-55 to +200
0-0.1 +0.1 0.38
-0.1
+0.1 1.3...
