FMMT596 Datasheet High Voltage Transistor

Manufacturer: Kexin Semiconductor

Overview: SMD Type Transistors.

Datasheet Details

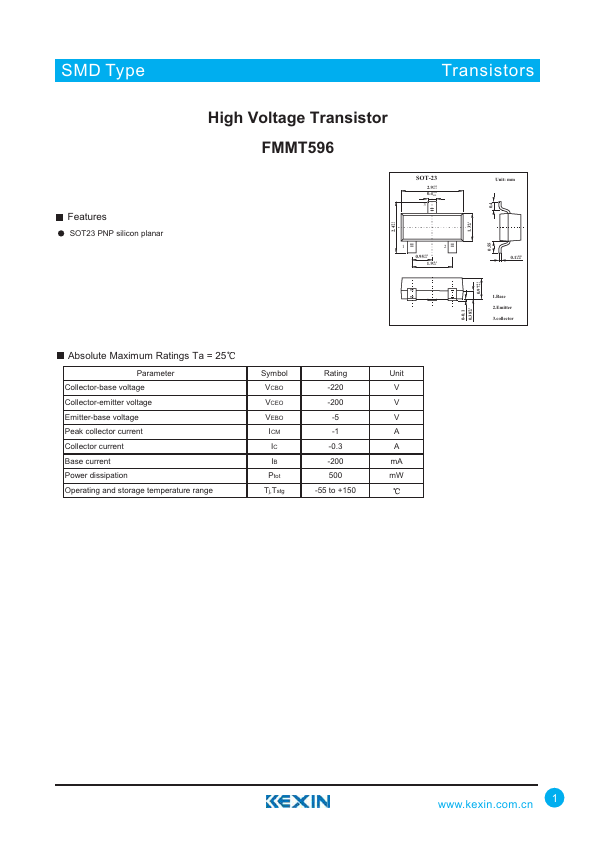

SOT23 PNP silicon planar High Voltage Transistor FMMT596 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 3 +0.1 2.4 -0.1 1 2 0.95+0.1 -0.1 1.9+0.1 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Peak collector current Collector current Base current Power dissipation Operating and storage temperature range Symbol Rating Unit VCBO -220 V VCEO -200 V VEBO -5 V ICM -1 A IC -0.3 A IB -200 mA Ptot 500 mW Tj,Tstg -.
