FMMT596 - PNP SILICON PLANAR HIGH VOLTAGE TRANSISTOR

Zetex (now Diodes Incorporated)

Datasheet Details

Part number	FMMT596
Manufacturer	Zetex (now Diodes Incorporated)
File Size	125.58 KB
Description	PNP SILICON PLANAR HIGH VOLTAGE TRANSISTOR
Datasheet	FMMT596 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
FMMT591	60V PNP MEDIUM POWER TRANSISTOR	DIODES
FMMT591	PNP Silicon Epitaxial Planar Transistor	GME
FMMT591	PNP Transistor	Rectron
FMMT591	PNP Transistor	MCC
FMMT591	PNP Transistor	LGE

Other Datasheets by Zetex (now Diodes Incorporated)

Part Number	Description
FMMT591	Medium power PNP transistor
FMMT593	PNP SILICON PLANAR HIGH VOLTAGE TRANSISTOR
FMMT597	PNP SILICON PLANAR HIGH VOLTAGE TRANSISTOR
FMMT5088	(FMMT5088 / FMMT5089) SOT23 NPN SILICON PLANAR SMALL SIGNAL TRANSISTORS
FMMT5089	(FMMT5088 / FMMT5089) SOT23 NPN SILICON PLANAR SMALL SIGNAL TRANSISTORS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

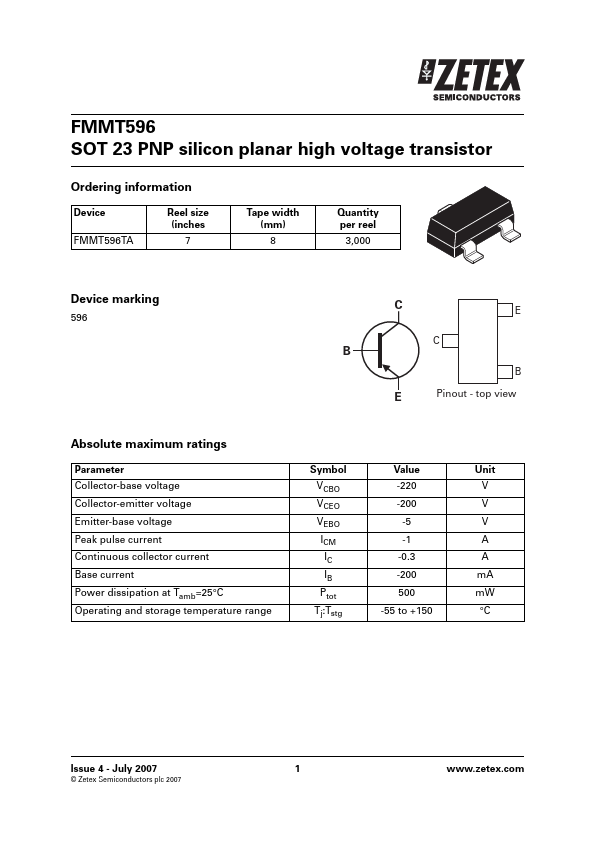

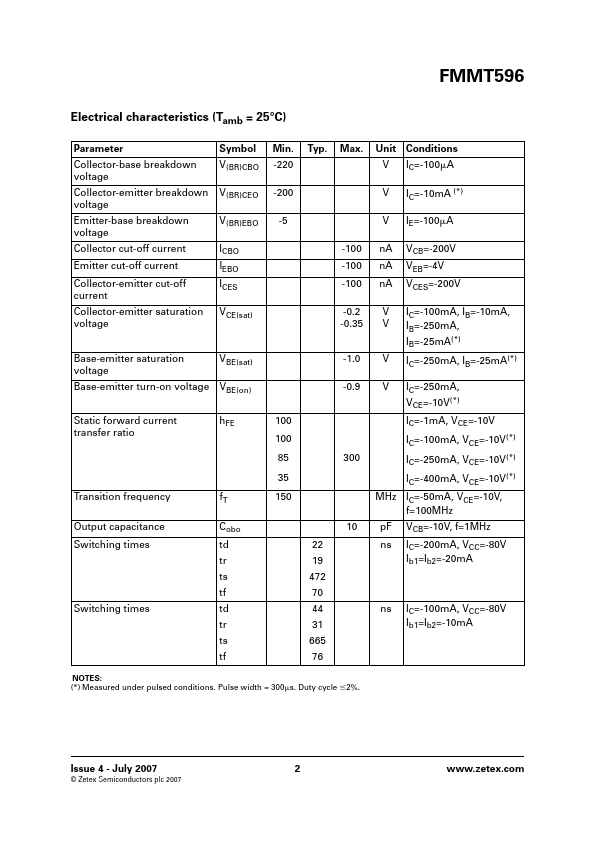

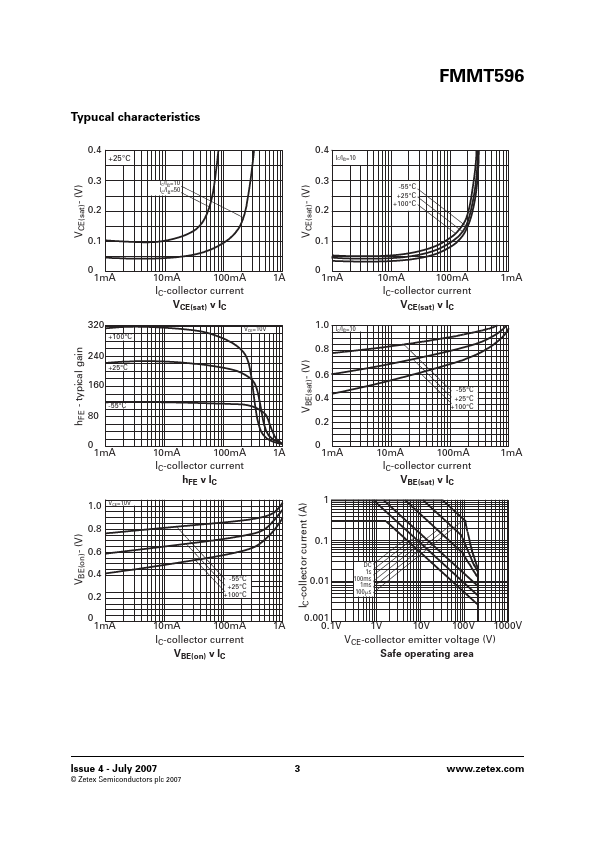

SOT23 PNP SILICON PLANAR HIGH VOLTAGE TRANSISTOR ISSUE 3 - NOVEMBER 1995 PARTMARKING DETAIL 596 7 FMMT596 C B E ABSOLUTE MAXIMUM RATINGS. PARAMETER Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Peak Pulse Current Continuous Collector Current Base Current Power Dissipation at Tamb=25°C Operating and Storage Temperature Range PARAMETER Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Collector Cut-Off Current Emitter Cut-Off Current Collector-Emitter Cut-Off Current Collector-Emitter Saturation Voltage SYMBOL VCBO VCEO VEBO ICM IC IB Ptot Tj:Tstg VALUE -220 -200 -5 -1 -0.3 -200 500 -55 to +150 MAX. UNIT CONDITIONS. V V V -100 -100 -100 -0.2 -0.35 -1.0 -0.
