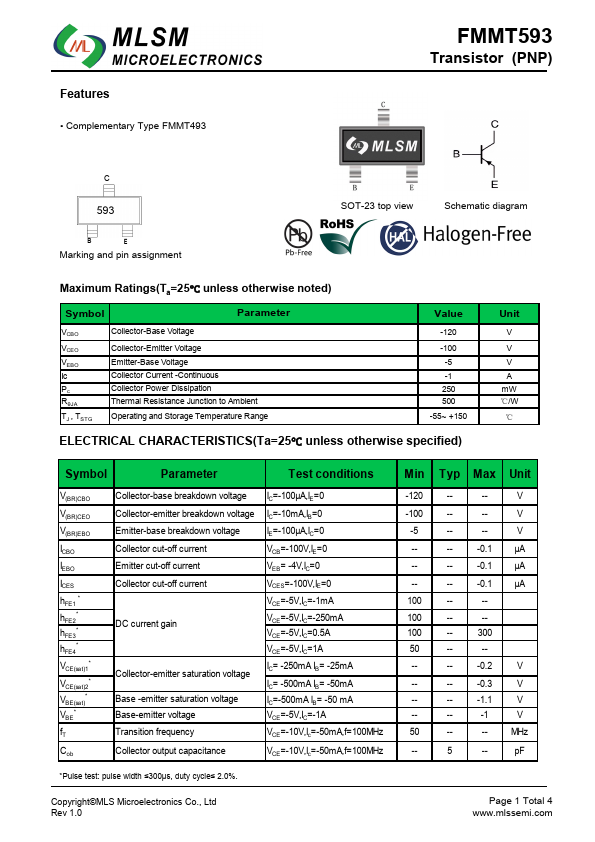

FMMT593
Features
- plementary Type FMMT493
Transistor (PNP)
SOT-23 top view
Schematic diagram
Marking and pin assignment
Maximum Ratings(Ta=25℃ unless otherwise noted)
Symbol
Parameter
VCBO
VCEO VEBO Ic Pc RθJA TJ , TSTG
Collector-Base Voltage
Collector-Emitter Voltage Emitter-Base Voltage Collector Current -Continuous Collector Power Dissipation Thermal Resistance Junction to Ambient Operating and Storage Temperature Range
Value
-120 -100
-5 -1 250 500 -55~ +150
ELECTRICAL CHARACTERISTICS(Ta=25℃ unless otherwise specified)
Unit
V V V A m W ℃/W ℃
Symbol
Parameter
Test conditions
V(BR)CBO
V(BR)CEO
V(BR)EBO
ICBO
IEBO
ICES h FE1
- h FE2- h FE3- h FE4- VCE(sat)1- VCE(sat)2- VBE(sat)- VBE- f T
Cob
Collector-base breakdown voltage Collector-emitter breakdown voltage Emitter-base breakdown voltage Collector cut-off current Emitter cut-off current Collector cut-off current
DC current gain
Collector-emitter saturation voltage Base -emitter saturation voltage Base-emitter voltage Transition frequency Collector output capacitance
IC=-100μA,IE=0 IC=-10m A,IB=0 IE=-100μA,IC=0 VCB=-100V,IE=0 VEB= -4V,IC=0 VCES=-100V,IE=0 VCE= -5V,IC=-1m A VCE= -5V,IC=-250m A VCE=...
