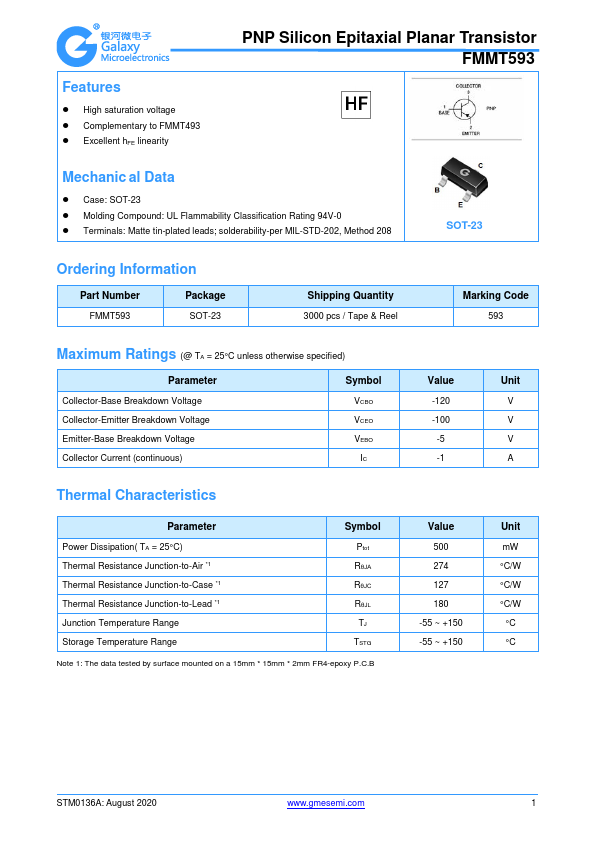

FMMT593
Features
- High saturation voltage
- plementary to FMMT493
- Excellent h FE linearity
PNP Silicon Epitaxial Planar Transistor FMMT593
Mechanic al Data
- Case: SOT-23
- Molding pound: UL Flammability Classification Rating 94V-0
- Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208
SOT-23
Ordering Information
Part Number FMMT593
Package SOT-23
Shipping Quantity 3000 pcs / Tape & Reel
Marking Code 593
Maximum Ratings (@ TA = 25°C unless otherwise specified)
Parameter Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Collector Current (continuous)
Symbol VCBO VCEO VEBO IC
Value -120 -100 -5 -1
Unit V V V A
Thermal Characteristics
Parameter
Symbol
Power Dissipation( TA = 25°C) Thermal Resistance Junction-to-Air
- 1 Thermal Resistance Junction-to-Case
- 1 Thermal Resistance Junction-to-Lead
- 1 Junction Temperature Range Storage Temperature Range
Ptot RθJA RθJC RθJL TJ TSTG
Note 1: The data tested by surface mounted on a 15mm
- 15mm
- 2mm FR4-epoxy P.C.B
Value 500 274 127 180
-55 ~ +150 -55 ~ +150
Unit m W °C/W °C/W °C/W °C °C
STM0136A: August 2020
