FMMT593
FMMT593 is PNP Plastic-Encapsulate Transistor manufactured by Micro Commercial Components.
Features
- Halogen Free. "Green" Device (Note 1)
- Moisture Sensitivity Level 1
- Epoxy Meets UL 94 V-0 Flammability Rating
- Lead Free Finish/Ro HS pliant ("P" Suffix Designates Ro HS pliant. See Ordering Information)
Maximum Ratings @ 25°C Unless Otherwise Specified
- Operating Junction Temperature Range: -55℃ to +150℃
- Storage Temperature Range: -55℃ to +150℃
- Thermal Resistance: 500℃/W Junction to Ambient
Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Power Dissipation
Symbol VCBO VCEO VEBO IC PD
Rating -120 -100 -5 -1 250
Unit V V V A m W
Note: 1. Halogen free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony pounds.

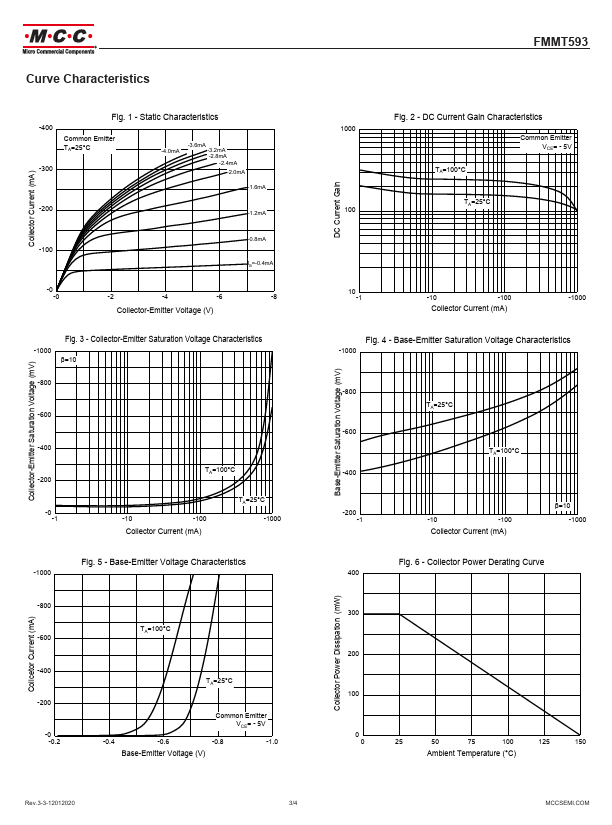

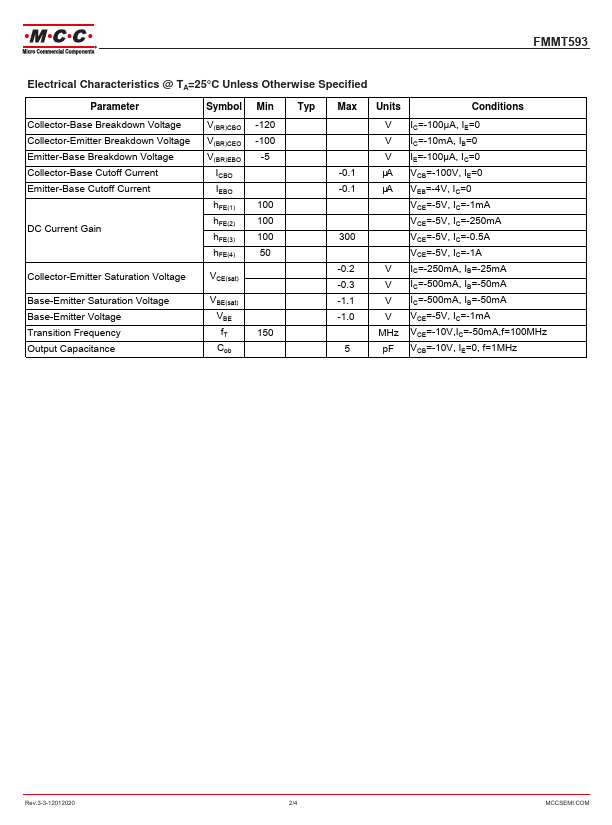

PNP Plastic-Encapsulate
Transistor
SOT-23
Marking: 593
Internal Structure 3
1 2
1.BASE 2.EMITTER 3.COLLECTOR
DIMENSIONS
INCHES
MIN MAX MIN MAX
A 0.110 0.120 2.80 3.04
B 0.083 0.104 2.10 2.64
C 0.047 0.055 1.20 1.40
D 0.034 0.041 0.85 1.05
E 0.067 0.083 1.70 2.10
F 0.018 0.024 0.45 0.60
G 0.0004 0.006 0.01 0.15
H 0.035 0.043 0.90...
