Diodes Incorporated FMMT593
100V PNP HIGH VOLTAGE TRANSISTOR
- Max Operating Temp : 150°C
- Min Operating Temp : -55°C
Source:
Octopart
| Part No. | FMMT593 |
|---|---|
| Datasheet | FMMT593 Download |
| Manufacturer |  Diodes Incorporated |
| Description | 100V PNP HIGH VOLTAGE TRANSISTOR |
| Buy | Stock & Price |

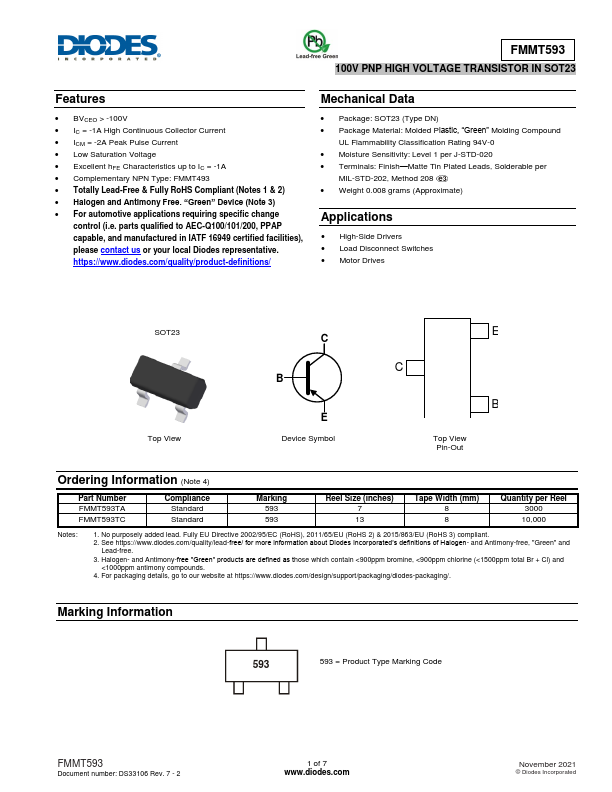

FEATURES
● BVCEO > -100V● IC = -1A High Continuous Collector Current
● ICM = -2A Peak Pulse Current
● Low Saturation Voltage
● Excellent hFE Characteristics up to IC = -1A
● Complementary NPN Type: FMMT493
● Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
● Halogen and Antimony Free. “Green” Device (Note 3)
● For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative.
MECHANICAL DATA
● Package: SOT23 (Type DN)● Package Material: Molded Plastic, “Green” Molding Compound UL Flammability Classification Rating 94V-0
● Moisture Sensitivity: Level 1 per J-STD-020
● Terminals: Finish—Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208
● Weight 0.008 grams (Approximate)
APPLICATIONS
● High-Side Drivers● Load Disconnect Switches
● Motor Drives SOT23 Top View C B E Device Symbol E C B Top View Pin-Out Ordering...
