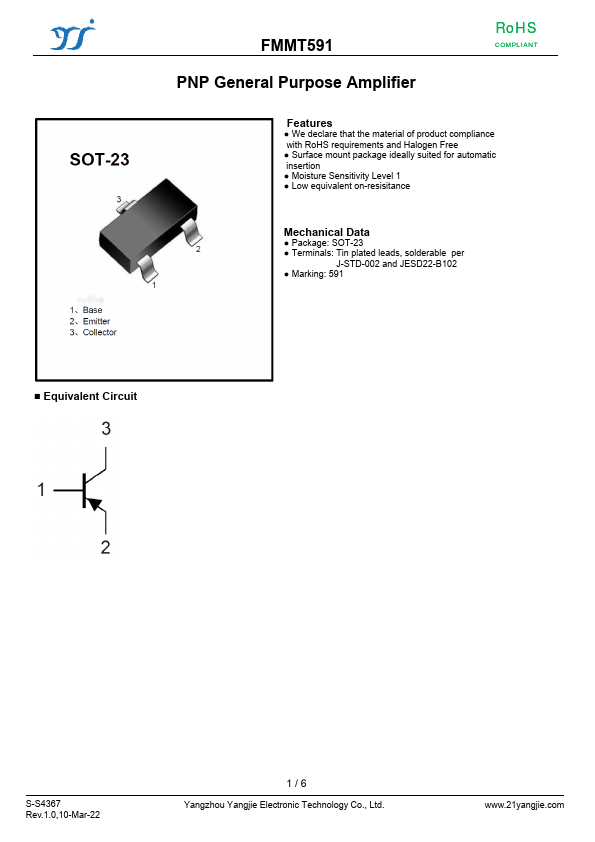

FMMT591
Features
- We declare that the material of product pliance with Ro HS requirements and Halogen Free
- Surface mount package ideally suited for automatic insertion
- Moisture Sensitivity Level 1
- Low equivalent on-resisitance
Mechanical Data
- Package: SOT-23
- Terminals: Tin plated leads, solderable per
J-STD-002 and JESD22-B102
- Marking: 591
- Equivalent Circuit
S-S4367 Rev.1.0,10-Mar-22
1/6
Yangzhou Yangjie Electronic Technology Co., Ltd.
.21yangjie.

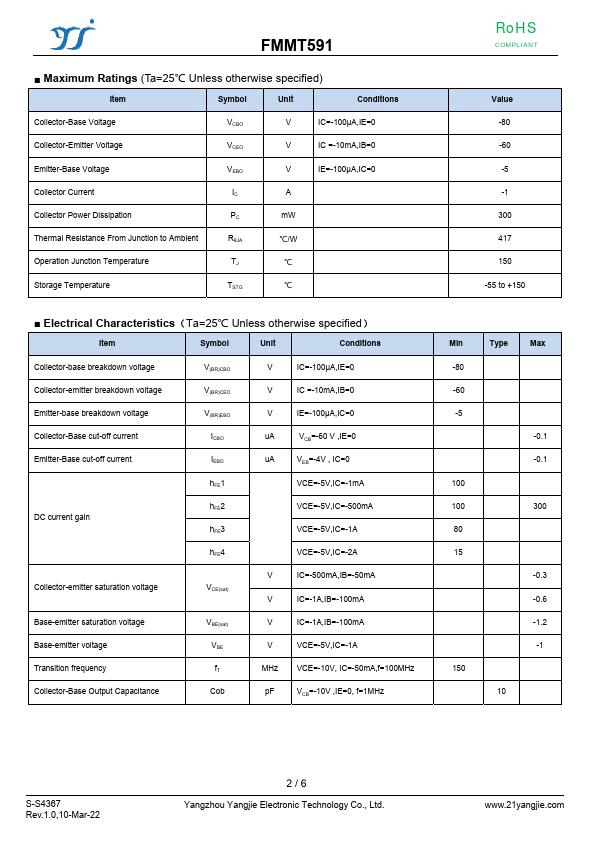

- Maximum Ratings (Ta=25℃ Unless otherwise specified)
Item
Symbol
Unit
Conditions
Collector-Base Voltage Collector-Emitter Voltage
VCBO VCEO
IC=-100μA,IE=0
IC =-10m A,IB=0
Emitter-Base Voltage
VEBO
IE=-100μA,IC=0
Collector Current
Collector Power Dissipation
PC m W
Thermal Resistance From Junction to Ambient
RθJA
℃/W
Operation Junction Temperature Storage...
