FMMT614 Datasheet Power Darlington Transistor

Manufacturer: Kexin Semiconductor

Overview: SMD Type Transistors.

Datasheet Details

Part number	FMMT614
Manufacturer	Kexin Semiconductor
File Size	32.82 KB
Description	Power Darlington Transistor
Download	FMMT614 Download (PDF)

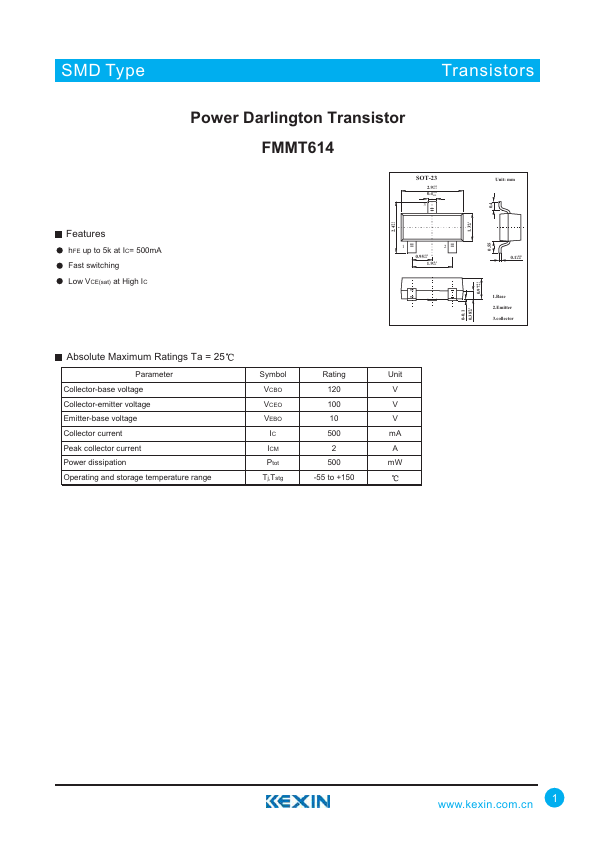

hFE up to 5k at IC= 500mA Fast switching Low VCE(sat) at High IC Power Darlington Transistor FMMT614 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 3 +0.1 2.4 -0.1 1 2 0.95+0.1 -0.1 1.9+0.1 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Peak collector current Power dissipation Operating and storage temperature range Symbol Rating Unit VCBO 120 V VCEO 100 V VEBO 10 V IC 500 mA ICM 2 A Ptot 500 m.
