FMW3 Datasheet Dual NPN Transistors

Manufacturer: Kexin Semiconductor

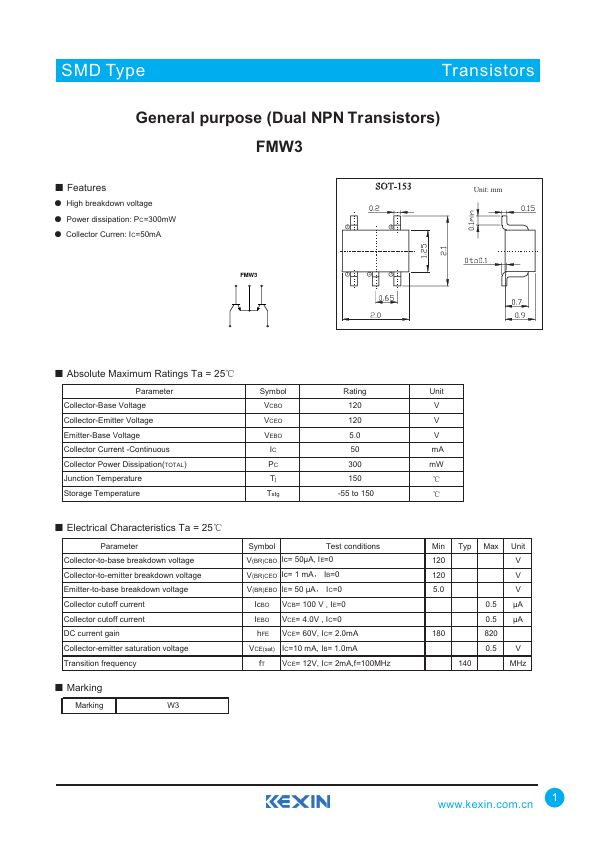

Overview: SMD Type TransistIoCrs General purpose (Dual NPN Transistors) FMW3.

Key Features

  • s.
  • High breakdown voltage.
  • Power dissipation: PC=300mW.
  • Collector Curren: IC=50mA 5 4 Unit: mm FMW3 1 2 3.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current -Continuous Collector Power Dissipation(TOTAL) Junction Temperature Storage Temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg Rating 120 120 5.0 50 300 150 -55 to 150.
  • Electrical Characteristics Ta = 25℃ Parameter Collector-to-.
