FZT1051A Datasheet NPN Transistors

Manufacturer: Kexin Semiconductor

📥 Download Datasheet

Overview

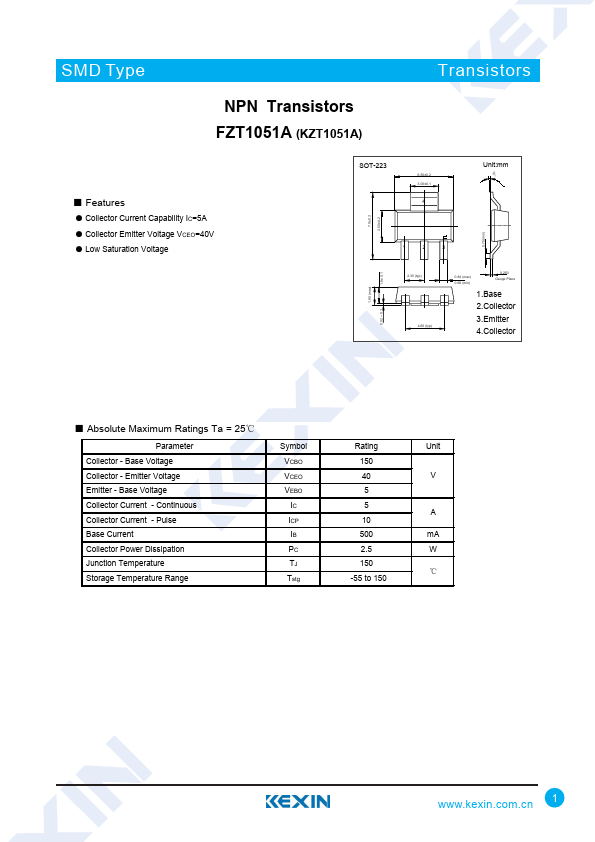

SMD Type Transistors NPN Transistors FZT1051A (KZT1051A) ■.

Key Features

  • s.
  • Collector Current Capability IC=5A.
  • Collector Emitter Voltage VCEO=40V.
  • Low Saturation Voltage SOT-223 6.50±0.2 3.00±0.1 4 10b Unit:mm 7.0±0.3 3.50±0.2 0.75 (min) 1.6 ± 0.1 1.80 (max) 1 2 3 2.30 (typ) 4.60 (typ) 0.84 (max) 0.66 (min) 0.250 Gauge Plane 1.Base 2.Collector 3.Emitter 4.Collector 0.02 ~ 0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Col.
