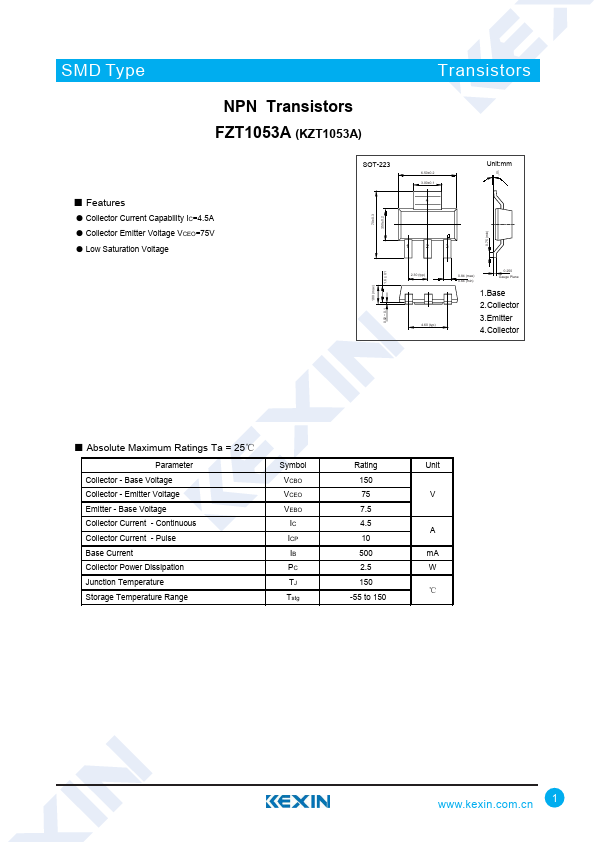

FZT1053A
Features
- Collector Current Capability IC=4.5A
- Collector Emitter Voltage VCEO=75V
- Low Saturation Voltage
SOT-223
6.50±0.2 3.00±0.1
10b
Unit:mm
7.0±0.3 3.50±0.2
0.75 (min)
1.6 ± 0.1
1.80 (max)
2.30 (typ) 4.60 (typ)
0.84 (max) 0.66 (min)
0.250 Gauge Plane
1.Base 2.Collector
3.Emitter
4.Collector
0.02 ~ 0.1
- Absolute Maximum Ratings Ta = 25℃
Parameter Collector
- Base Voltage Collector
- Emitter Voltage Emitter
- Base Voltage Collector Current
- Continuous Collector Current
- Pulse Base Current Collector Power Dissipation Junction Temperature Storage Temperature Range
Symbol VCBO VCEO VEBO IC ICP IB PC TJ Tstg
Rating
Unit
4.5 A
500 m A
150 ℃
-55 to...
