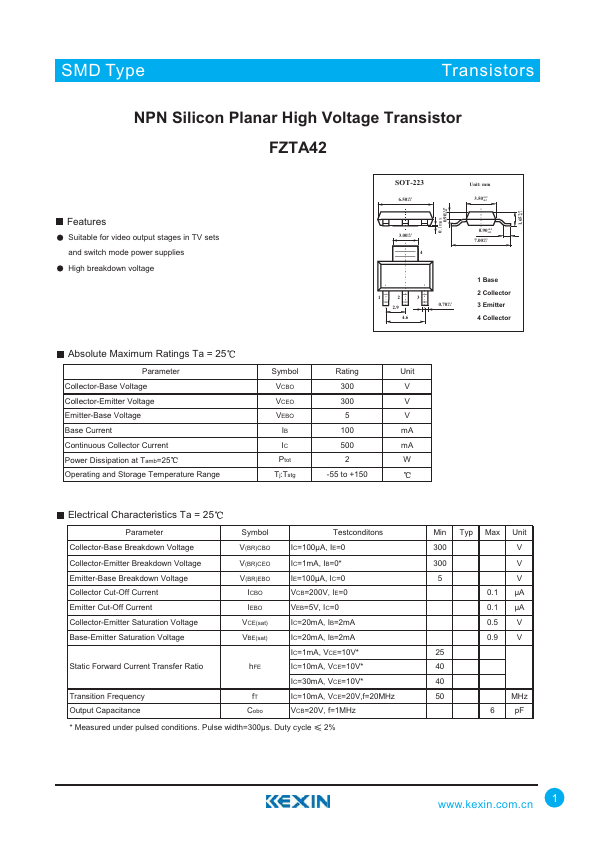

FZTA42
FZTA42 is NPN Silicon Planar High Voltage Transistor manufactured by Kexin Semiconductor.
Features
Suitable for video output stages in TV sets and switch mode power supplies High breakdown voltage
SOT-223
6.50+0.2 -0.2
Unit: mm 3.50+0.2
-0.2
3.00+0.1 -0.1 4
0.90+0.2 -0.2
7.00+0.3 -0.3
0.70+0.1 -0.1
1 Base 2 Collector 3 Emitter 4 Collector
Absolute Maximum Ratings Ta = 25
Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Base Current Continuous Collector Current Power Dissipation at Tamb=25 Operating and Storage Temperature Range
Symbol
Rating
Unit
VCBO
VCEO
VEBO
100 m A
500 m A
Ptot
Tj:Tstg
-55 to +150
Electrical Characteristics Ta = 25
Parameter Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Collector Cut-Off Current Emitter Cut-Off Current Collector-Emitter Saturation Voltage Base-Emitter Saturation Voltage
Static Forward Current Transfer Ratio
Transition Frequency Output Capacitance
Symbol V(BR)CBO V(BR)CEO...
