FZTA42 - NPN SILICON PLANAR HIGH VOLTAGE TRANSISTOR

Features

  • Suitable for video output stages in TV sets and switch mode power supplies.
  • High breakdown voltage FZTA42 C E.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FZTA92 SOT223 PNP SILICON PLANAR HIGH VOLTAGE TRANSISTOR Diodes
FZT1047A 10V NPN MEDIUM POWER TRANSISTOR Diodes
FZT1048A NPN Transistors Kexin
FZT1048A 17.5V NPN MEDIUM POWER HIGH GAIN TRANSISTOR Diodes
FZT1049A 25V NPN MEDIUM POWER TRANSISTOR Diodes

Other Datasheets by Zetex (Diodes Incorporated)

Part Number Description
FZTA14 NPN SILICON PLANAR DARLINGTON TRANSISTOR
FZTA64 PNP SILICON PLANAR DARLINGTON TRANSISTORS
FZT2222A SOT223 NPN SILICON PLANAR SWITCHING TRANSISTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

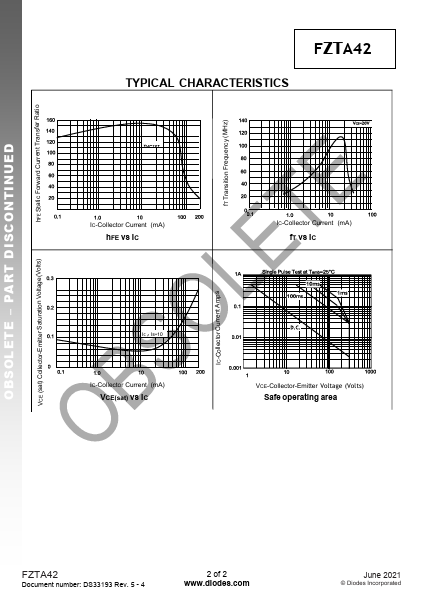

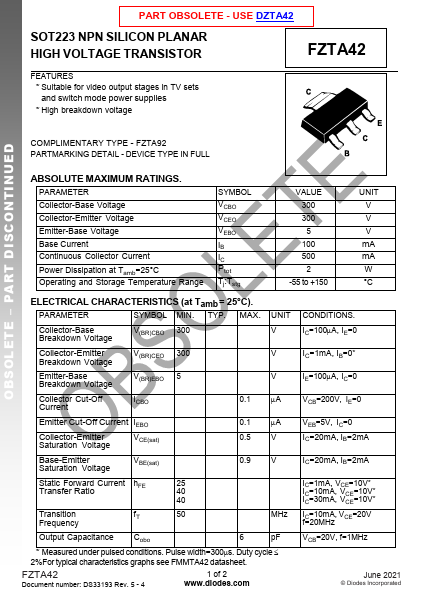

SOT223 NPN SILICON PLANAR HIGH VOLTAGE TRANSISTOR ISSUE 2 – NOVEMBER 93 7 FEATURES * Suitable for video output stages in TV sets and switch mode power supplies * High breakdown voltage FZTA42 C E COMPLIMENTARY TYPE – FZTA92 PARTMARKING DETAIL – DEVICE TYPE IN FULL C B ABSOLUTE MAXIMUM RATINGS. PARAMETER Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Base Current Continuous Collector Current Power Dissipation at Tamb=25°C Operating and Storage Temperature Range SYMBOL VCBO VCEO VEBO IB IC Ptot Tj:Tstg VALUE 300 300 5 100 500 2 -55 to +150 UNIT V V V mA mA W °C ELECTRICAL CHARACTERISTICS (at Tamb = 25°C).
