Kexin Electronics GBLC15C
ESD Protection Diodes
| Part No. | GBLC15C |
|---|---|
| Datasheet | GBLC15C Download |
| Manufacturer | Kexin Electronics |
| Description | ESD Protection Diodes |
| Buy | Stock & Price |

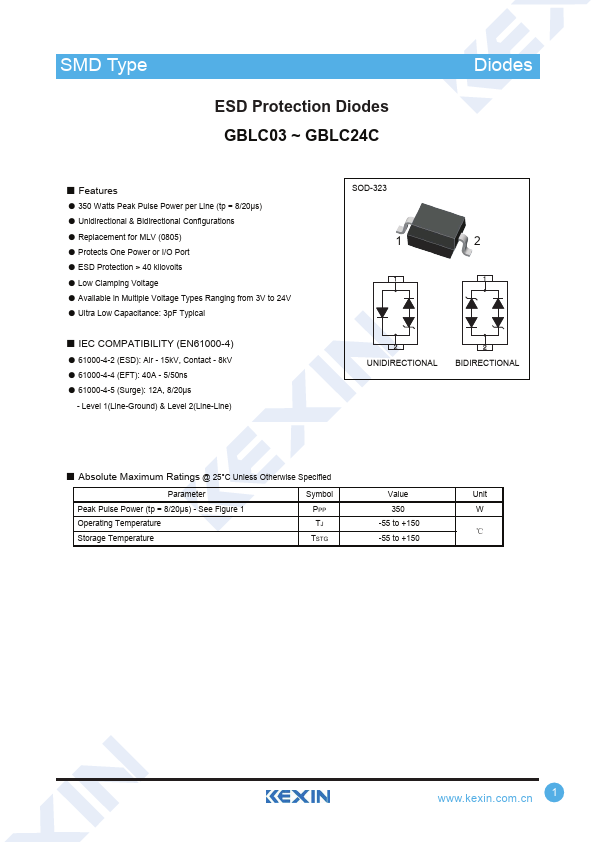

FEATURES
● 350 Watts Peak Pulse Power per Line (tp = 8/20µs)● Unidirectional & Bidirectional Configurations
● Replacement for MLV (0805)
● Protects One Power or I/O Port
● ESD Protection > 40 kilovolts
● Low Clamping Voltage
● Available in Multiple Voltage Types Ranging from 3V to 24V
● Ultra Low Capacitance: 3pF Typical
● IEC COMPATIBILITY (EN61000-4)
● 61000-4-2 (ESD): Air - 15kV, Contact - 8kV
● 61000-4-4 (EFT): 40A - 5/50ns
● 61000-4-5 (Surge): 12A, 8/20µs - Level 1(Line-Ground) & Level 2(Line-Line) SOD-323 1 2 UNIDIRECTIONAL BIDIRECTIONAL
●
ABSOLUTE MAXIMUM RATINGS
@ 25°C Unless Otherwise Specified Parameter Peak Pulse Power (tp = 8/20µs) - See Figure 1 Operating Temperature Storage Temperature Symbol Value Unit PPP 350 W TJ -55 to +150 ℃ TSTG -55 to +150 1 SMD Type TransDisiotodress ESD Protection Diodes GBLC03 ~ GBLC24C●

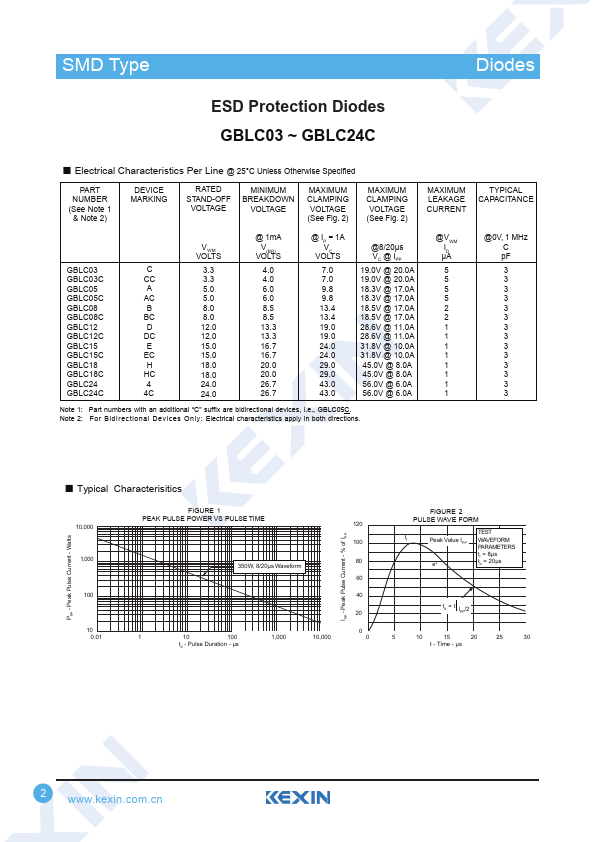

ELECTRICAL CHARACTERISTICS
Per Line @ 25°C Unless Otherwise Specified PART NUMBER (See Note 1 & Note 2) DEVICE MARKING RATED STAND-OFF VOLTAGE MINIMUM BREAKDOWN VOLTAGE MAXIMUM CLAMPING VOLTAGE (See Fig.
