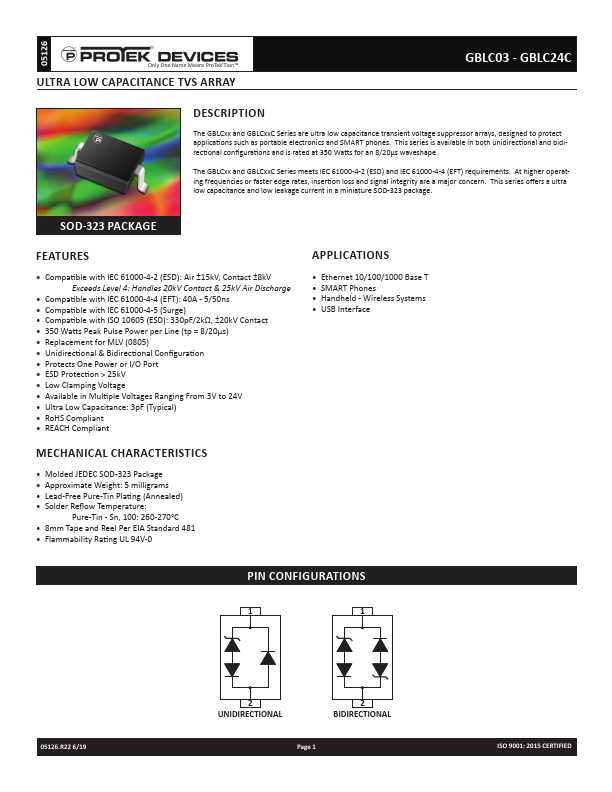

GBLC15C datasheet preview

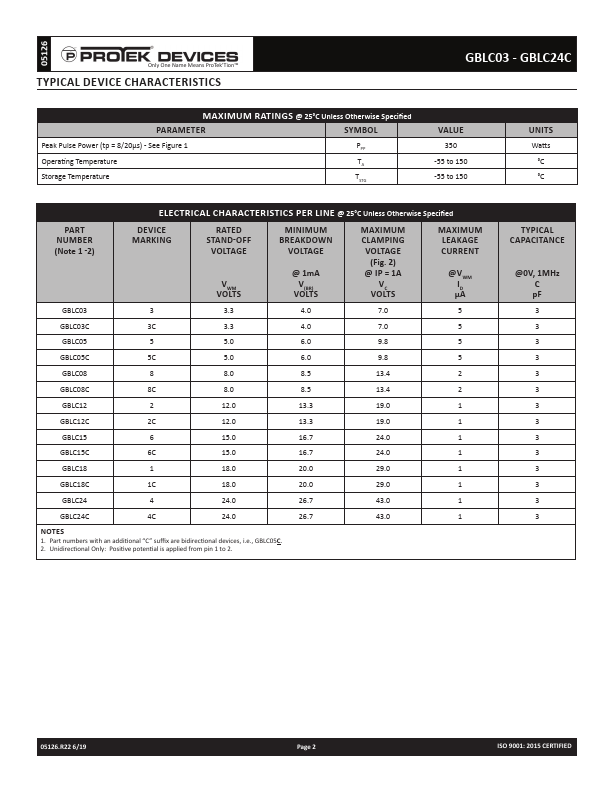

GBLC15C page 2
Page 2
GBLC15C page 3
Page 3

GBLC15C Key Features

  • patible with IEC 61000-4-2 (ESD): Air ±15kV, Contact ±8kV Exceeds Level 4: Handles 20kV Contact & 25kV Air Discharge
  • patible with IEC 61000-4-4 (EFT): 40A
  • 5/50ns
  • patible with IEC 61000-4-5 (Surge)
  • patible with ISO 10605 (ESD): 330pF/2kΩ, ±20kV Contact
  • 350 Watts Peak Pulse Power per Line (tp = 8/20µs)
  • Replacement for MLV (0805)
  • Unidirectional & Bidirectional Configuration
  • Protects One Power or I/O Port
  • ESD Protection > 25kV

Other GBLC15C Datasheets

Manufacturer Part Number Description
CITC Logo Chip Integration Technology GBLC15C 350W Surface Mount Transient Voltage Suppressor Array
AiT Semiconductor Logo AiT Semiconductor GBLC15C BIDIRECTIONAL ULTRA LOW CAPACITANCE TVS ARRAY
Kexin Logo Kexin Semiconductor GBLC15C ESD Protection Diodes
CITC Logo Chip Integration Technology GBLC15 350W Surface Mount Transient Voltage Suppressor Array
GME Logo Galaxy Microelectronics GBLC15 Ultralow Capacitance TVS Array

View all GBLC15C datasheets →

GBLC15C Description

The GBLCxx and GBLCxxC Series are ultra low capacitance transient voltage suppressor arrays, designed to protect applications such as portable electronics and SMART phones. This series is available in both unidirectional and bidirectional configurations and is rated at 350 Watts for an 8/20µs waveshape. The GBLCxx and GBLCxxC Series meets IEC 61000-4-2 (ESD) and IEC 61000-4-4 (EFT) requirements.
