Kexin Electronics GSOT04
ESD Protection Diodes
| Part No. | GSOT04 |
|---|---|
| Datasheet | GSOT04 Download |
| Manufacturer | Kexin Electronics |
| Description | ESD Protection Diodes |
| Buy | Stock & Price |

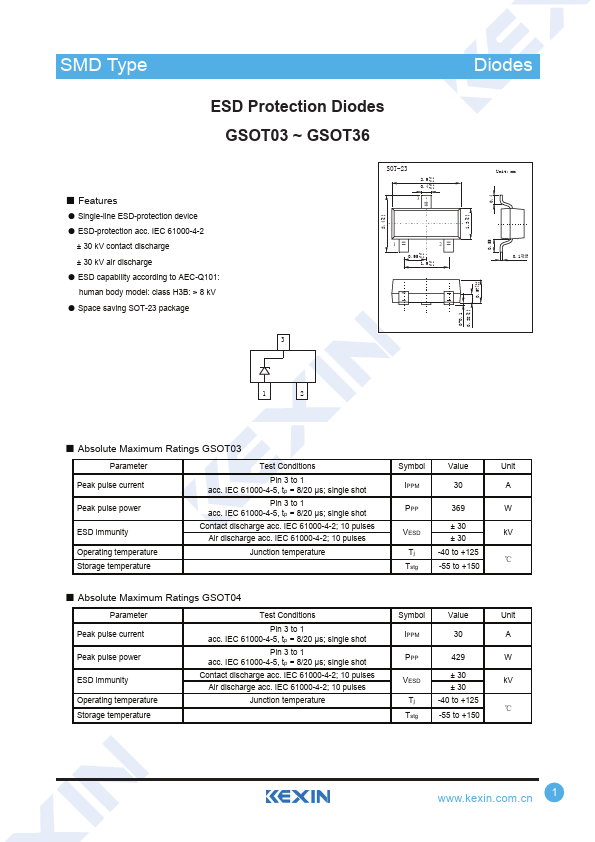

FEATURES
● Single-line ESD-protection device● ESD-protection acc. IEC 61000-4-2 ± 30 kV contact discharge ± 30 kV air discharge
● ESD capability according to AEC-Q101: human body model: class H3B: > 8 kV
● Space saving SOT-23 package +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 +0.1 0.97 -0.1 0-0.1 +0.1 0.38 -0.1 3 1 2
●
ABSOLUTE MAXIMUM RATINGS
GSOT03 Parameter Peak pulse current Peak pulse power ESD immunity Operating temperature Storage temperature Test Conditions Pin 3 to 1 acc. IEC 61000-4-5, tp = 8/20 μs; single shot Pin 3 to 1 acc. IEC 61000-4-5, tp = 8/20 μs; single shot Contact discharge acc. IEC 61000-4-2; 10 pulses Air discharge acc. IEC 61000-4-2; 10 pulses Junction temperature Symbol Value Unit IPPM 30 A PPP 369 W VESD ± 30 kV ± 30 Tj -40 to +125 ℃ Tstg -55 to +150●

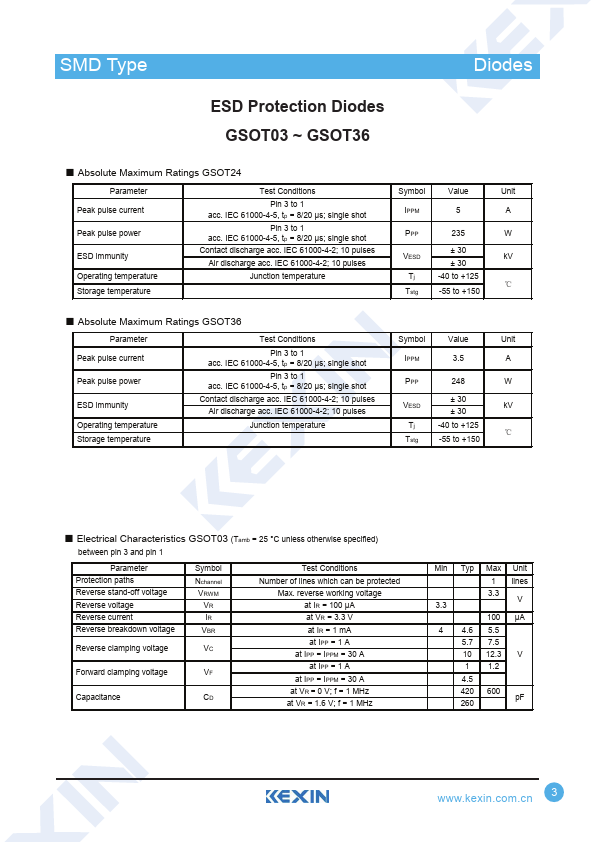

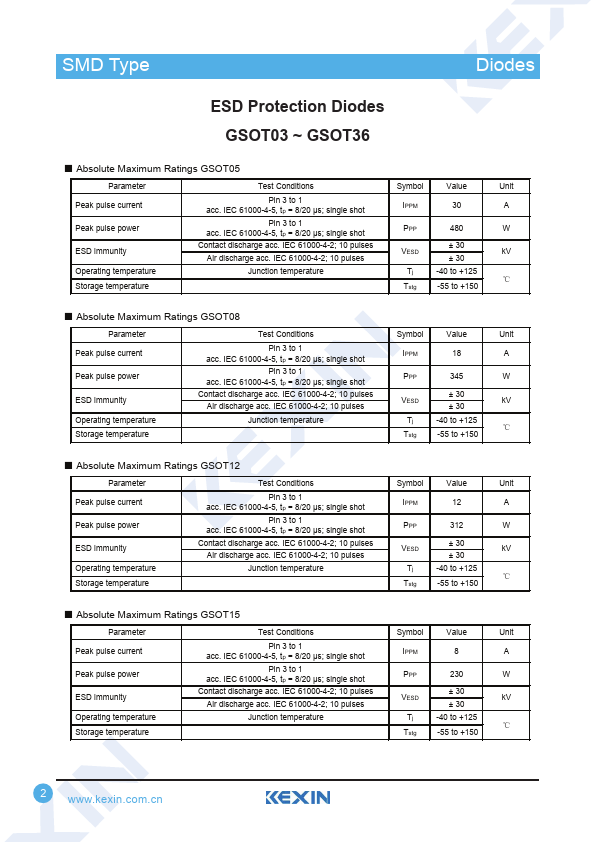

ABSOLUTE MAXIMUM RATINGS
GSOT04 Parameter Peak pulse current Peak pulse power ESD immunity Operating temperature Storage temperature Test Conditions Pin 3 to 1 acc.
