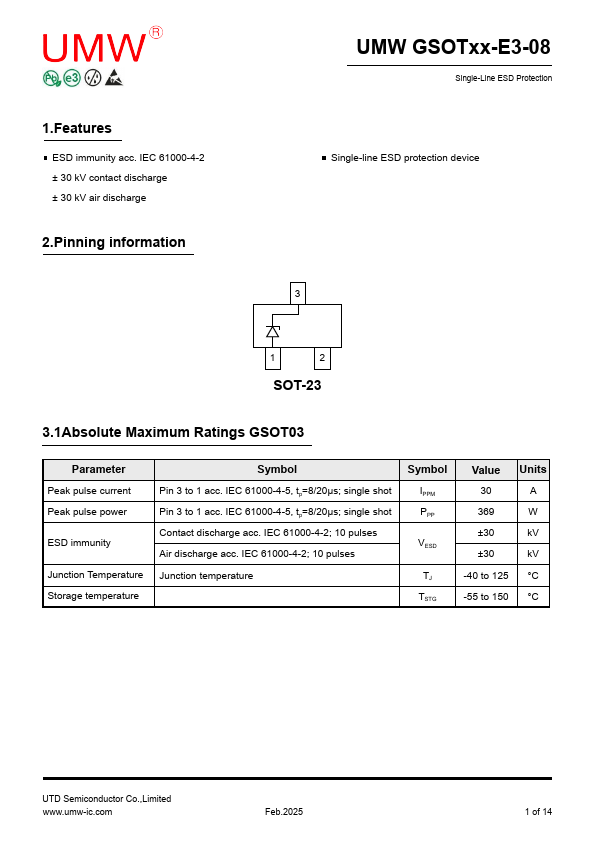

GSOT04
Features
ESD immunity acc. IEC 61000-4-2 ± 30 k V contact discharge ± 30 k V air discharge
2.Pinning information
UMW GSOTxx-E3-08
Single-Line ESD Protection
Single-line ESD protection device
SOT-23
3.1Absolute Maximum Ratings GSOT03
Parameter Peak pulse current Peak pulse power
ESD immunity
Junction Temperature Storage temperature
Symbol Pin 3 to 1 acc. IEC 61000-4-5, tp=8/20μs; single shot Pin 3 to 1 acc. IEC 61000-4-5, tp=8/20μs; single shot Contact discharge acc. IEC 61000-4-2; 10 pulses Air discharge acc. IEC 61000-4-2; 10 pulses Junction temperature
Symbol IPPM PPP
VESD
TJ TSTG
Value Units
±30 k V
±30 k V
-40 to 125 °C
-55 to 150 °C
UTD Semiconductor Co.,Limited .umw-ic.
Feb.2025
1 of 14
.umw-ic.
UMW GSOTxx-E3-08
Single-Line ESD Protection

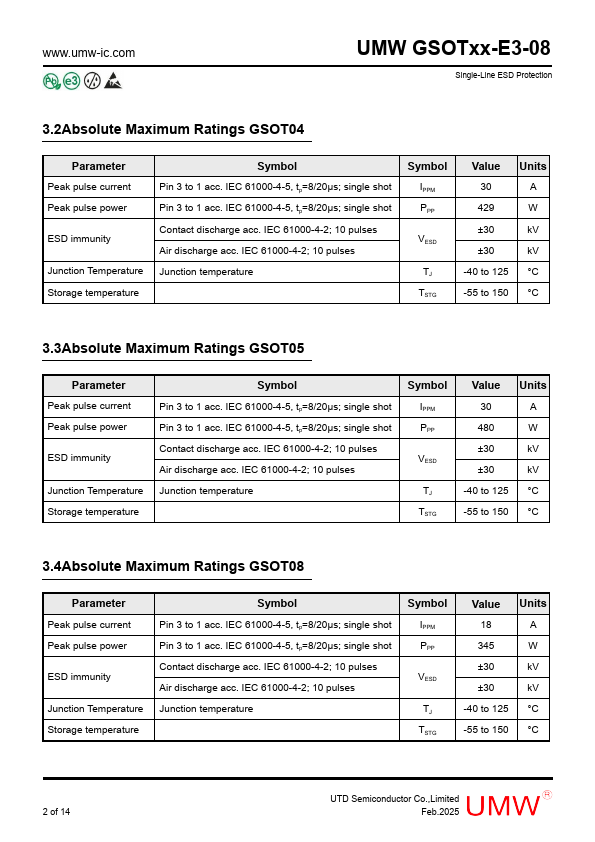

3.2Absolute Maximum Ratings GSOT04
Parameter Peak pulse current Peak pulse power
ESD immunity
Junction Temperature Storage temperature
Symbol Pin 3 to 1 acc. IEC 61000-4-5, tp=8/20μs; single shot Pin 3 to...
